Inspection [03/2017 - 09/2019]: Procedure
- INSPECT FRONT POWER SEAT SWITCH LH
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
SLIDE SWITCHTester Connection Condition Specified Condition 4 - 6 Slide switch pressed
(Front)Below 1 Ω 1 - 12 4 - 12 Off 1 - 12 1 - 6 Slide switch pressed
(Rear)4 - 12 FRONT VERTICAL SWITCHTester Connection Condition Specified Condition 7 - 6 Front vertical switch pressed
(Up)Below 1 Ω 11 - 12 7 - 12 Off 11 - 12 11 - 6 Front vertical switch pressed
(Down)7 - 12 LIFTER SWITCHTester Connection Condition Specified Condition 8 - 6 Lifter switch pressed
(Up)Below 1 Ω 10 - 12 10 - 12 Off 8 - 12 10 - 6 Lifter switch pressed
(Down)8 - 12 RECLINING SWITCHTester Connection Condition Specified Condition 5 - 6 Reclining switch pressed
(Front)Below 1 Ω 5 - 7 5 - 11 3 - 12 5 - 12 Off 3 - 12 3 - 6 Reclining switch pressed
(Rear)5 - 12 3 - 8 3 - 10 LUMBAR SUPPORT SWITCHTester Connection Condition Specified Condition 9 - 6 Lumbar switch pressed
(Hold)Below 1 Ω 2 - 12 2 - 12 Off 9 - 12 2 - 6 Lumbar switch pressed
(Release)9 - 12 If the result is not as specified, replace the front power seat switch LH.

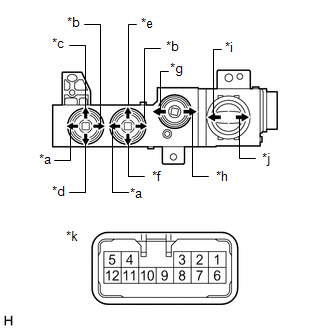

*a Slide Switch (Front) *b Slide Switch (Rear) *c Front Vertical Switch (Up) *d Front Vertical Switch (Down) *e Lifter Switch (Up) *f Lifter Switch (Down) *g Reclining Switch (Front) *h Reclining Switch (Rear) *i Lumbar Support Switch (Hold) *j Lumbar Support Switch (Release) *k Component without harness connected
(Front Power Seat Switch LH)
- Measure the resistance according to the value(s) in the table below.
