Components [08/2018 - 09/2019]

Fig 1: Lumbar Support Adjuster Assembly (For TMC Made Power Seat) Replacement Components [08/2018 - 09/2019] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT SEAT CUSHION SHIELD LH	*2	FRONT SEAT FRONT CUSHION SHIELD LH
*3	FRONT SEAT INNER CUSHION SHIELD LH	-	-

Fig 2: Lumbar Support Adjuster Assembly (For TMC Made Power Seat) Replacement Components With Torque Specifications [08/2018 - 09/2019] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	SEPARATE TYPE FRONT SEATBACK ASSEMBLY	*2	SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

Fig 3: Lumbar Support Adjuster Assembly (For TMC Made Power Seat) Replacement Components [08/2018 - 09/2019] (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FRONT SEAT HEADREST SUPPORT

SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

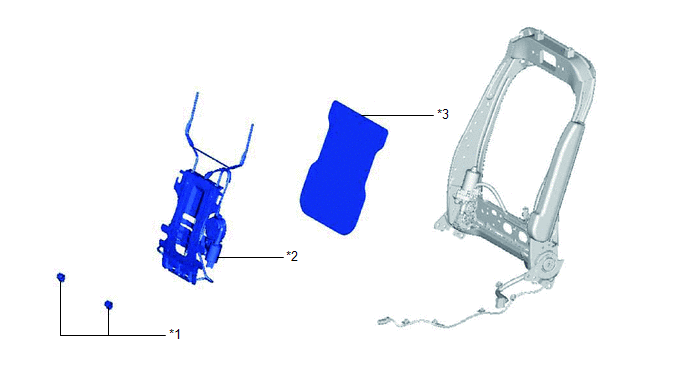

Fig 4: Lumbar Support Adjuster Assembly (For TMC Made Power Seat) Replacement Components [08/2018 - 09/2019] (4 Of 4)

*1	FRONT SEATBACK EDGE PROTECTOR	*2	LUMBAR SUPPORT ADJUSTER ASSEMBLY LH
*3	SEATBACK FELT	-	-
