Inspection [06/2017 - ]: Procedure

  1. INSPECT FRONT SEATBACK HEATER ASSEMBLY RH
    1. Measure the resistance according to the value(s) in the table below.

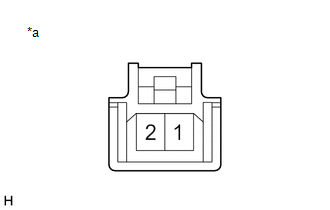

      GTY772202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Front Seatback Heater Assembly RH)

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 Seat heater temperature 23°C (73°F) 4.2 to 5.2 Ω

      If the result is not as specified, replace the front seatback heater assembly RH.
