Components [06/2017 - ]

Fig 1: Front Seat Cushion Heater (For Power Seat) Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT SEAT CUSHION SHIELD	*2	FRONT SEAT FRONT CUSHION SHIELD
*3	FRONT SEAT INNER CUSHION SHIELD	-	-

Fig 2: Front Seat Cushion Heater (For Power Seat) Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	SEPARATE TYPE FRONT SEATBACK ASSEMBLY	*2	SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

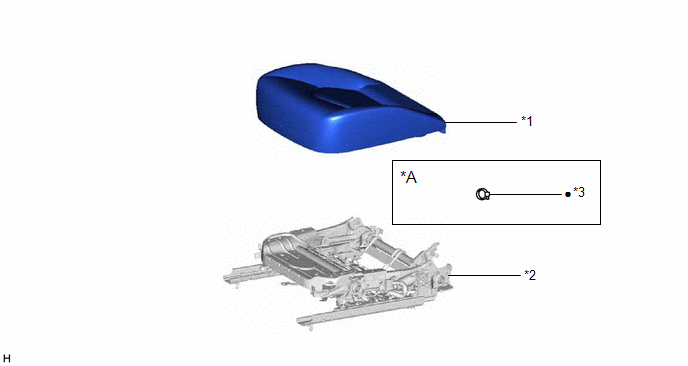

Fig 3: Front Seat Cushion Heater (For Power Seat) Replacement Components (3 Of 4)

*A	w/ Wire Harness Clamp	-	-
*1	SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD	*2	SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY
*3	WIRE HARNESS CLAMP	-	-
•	Non-reusable part	-	-

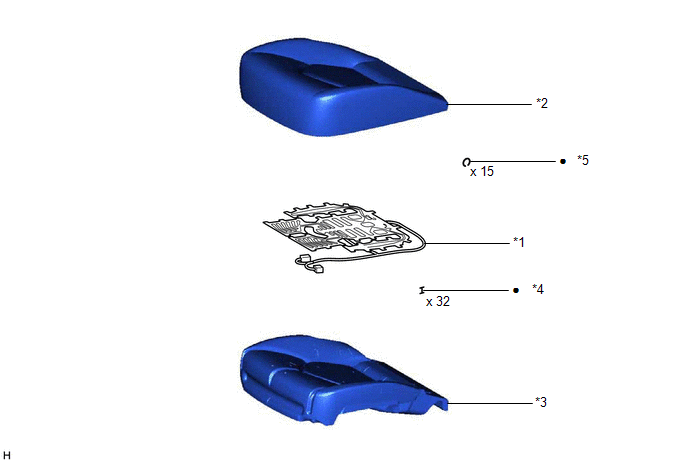

Fig 4: Front Seat Cushion Heater (For Power Seat) Replacement Components (4 Of 4)

*1	FRONT SEAT CUSHION HEATER ASSEMBLY	*2	SEPARATE TYPE FRONT SEAT CUSHION COVER
*3	SEPARATE TYPE FRONT SEAT CUSHION PAD	*4	TAG PIN
*5	HOG RING	-	-
•	Non-reusable part	-	-
