Components [06/2017 - 09/2019]

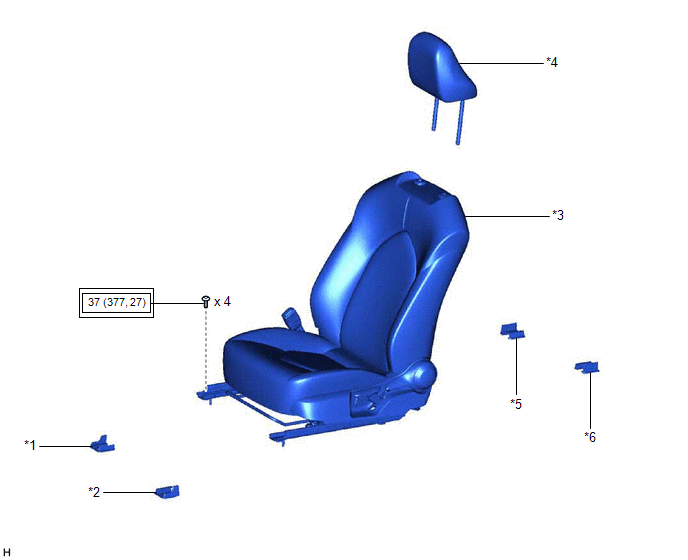

Fig 1: Front Seat Assembly (For TMMK Made Manual Seat) Replacement Components With Torque Specifications [06/2017 - 09/2019] (1 Of 13)
| Callout | Description | Callout | Description |
| *1 | FRONT INNER SEAT TRACK BRACKET COVER | *2 | FRONT OUTER SEAT TRACK BRACKET COVER |
| *3 | FRONT SEAT ASSEMBLY | *4 | FRONT SEAT HEADREST ASSEMBLY |
| *5 | REAR INNER SEAT TRACK BRACKET COVER | *6 | REAR OUTER SEAT TRACK BRACKET COVER |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

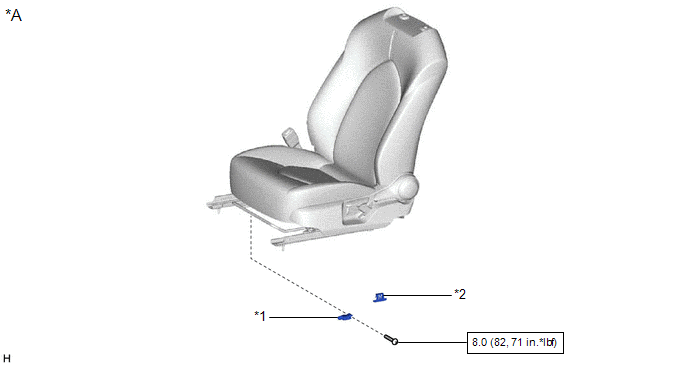

Fig 2: Front Seat Assembly (For TMMK Made Manual Seat) Replacement Components With Torque Specifications [06/2017 - 09/2019] (2 Of 13)
| Callout | Description | Callout | Description |
| *A | For Driver Side | - | - |
| *1 | SEAT POSITION AIRBAG SENSOR | *2 | SEAT SLIDE POSITION SENSOR PROTECTOR |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

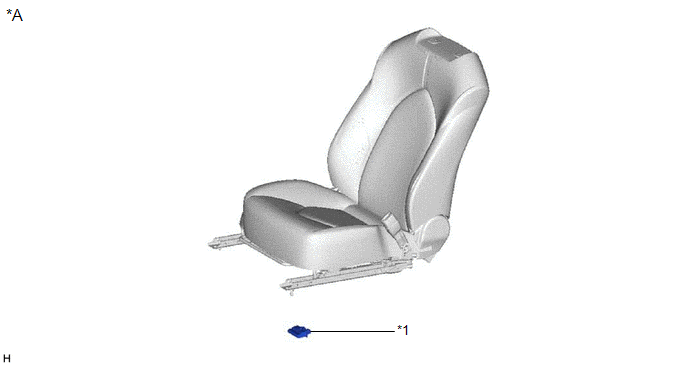

Fig 3: Front Seat Assembly (For TMMK Made Manual Seat) Replacement Components [06/2017 - 09/2019] (3 Of 13)
| *A | For Front Passenger Side | - | - |
| *1 | OCCUPANT DETECTION ECU | - | - |

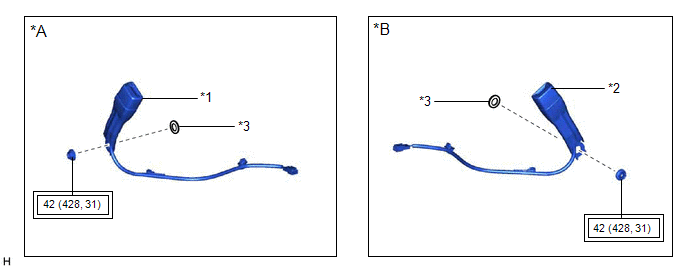

Fig 4: Front Seat Assembly (For TMMK Made Manual Seat) Replacement Components With Torque Specifications [06/2017 - 09/2019] (4 Of 13)
| Callout | Description | Callout | Description |
| *A | For Driver Side | *B | For Front Passenger Side |
| *1 | FRONT SEAT INNER BELT ASSEMBLY LH | *2 | FRONT SEAT INNER BELT ASSEMBLY RH |
| *3 | FRONT SEAT BELT ANCHOR PLATE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

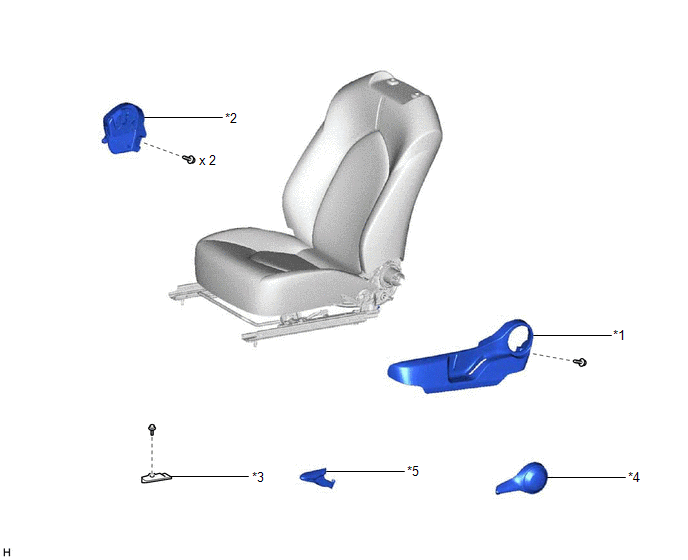

Fig 5: Front Seat Assembly (For TMMK Made Manual Seat) Replacement Components [06/2017 - 09/2019] (5 Of 13)
| *1 | FRONT SEAT CUSHION SHIELD | *2 | FRONT SEAT INNER CUSHION SHIELD |
| *3 | FRONT SEAT LOWER CUSHION SHIELD | *4 | RECLINING ADJUSTER RELEASE HANDLE |
| *5 | VERTICAL ADJUSTING HANDLE | - | - |

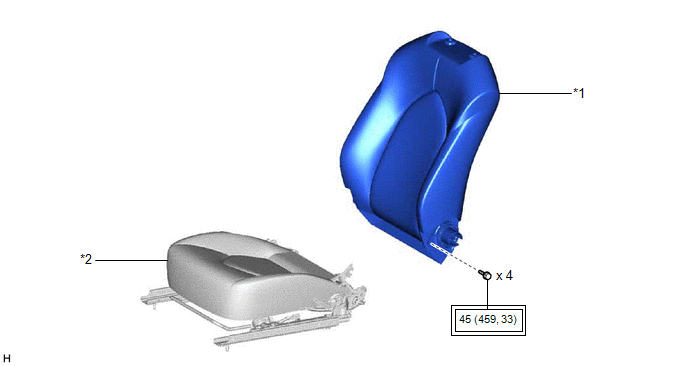

Fig 6: Front Seat Assembly (For TMMK Made Manual Seat) Replacement Components With Torque Specifications [06/2017 - 09/2019] (6 Of 13)
| Callout | Description | Callout | Description |
| *1 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | *2 | SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

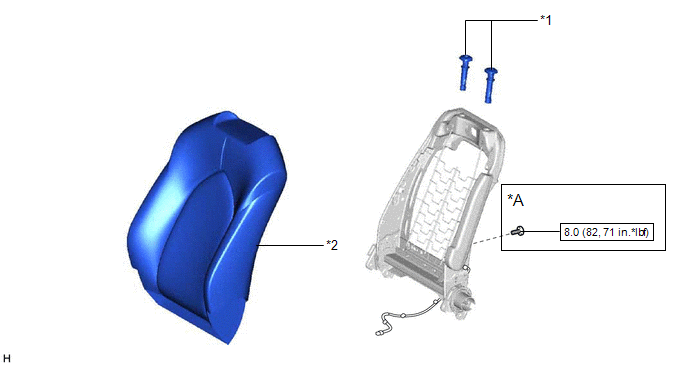

Fig 7: Front Seat Assembly (For TMMK Made Manual Seat) Replacement Components With Torque Specifications [06/2017 - 09/2019] (7 Of 13)
| Callout | Description | Callout | Description |
| *A | w/ Webbing | - | - |
| *1 | FRONT SEAT HEADREST SUPPORT | *2 | SEPARATE TYPE FRONT SEATBACK COVER WITH PAD |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

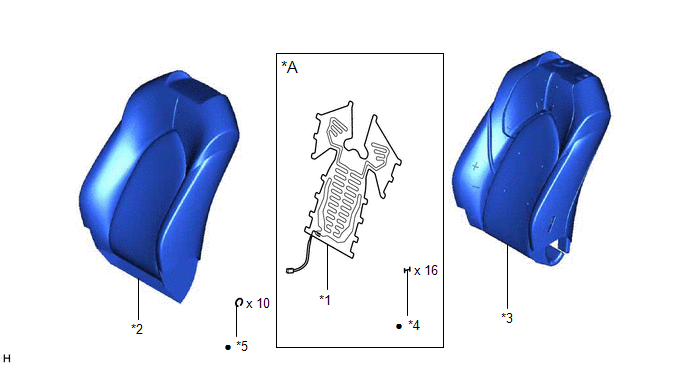

Fig 8: Front Seat Assembly (For TMMK Made Manual Seat) Replacement Components [06/2017 - 09/2019] (8 Of 13)
| *A | w/ Seat Heater System | - | - |
| *1 | FRONT SEATBACK HEATER ASSEMBLY RH | *2 | SEPARATE TYPE FRONT SEATBACK COVER |
| *3 | SEPARATE TYPE FRONT SEATBACK PAD | *4 | TAG PIN |
| *5 | HOG RING | - | - |
| • | Non-reusable part | - | - |

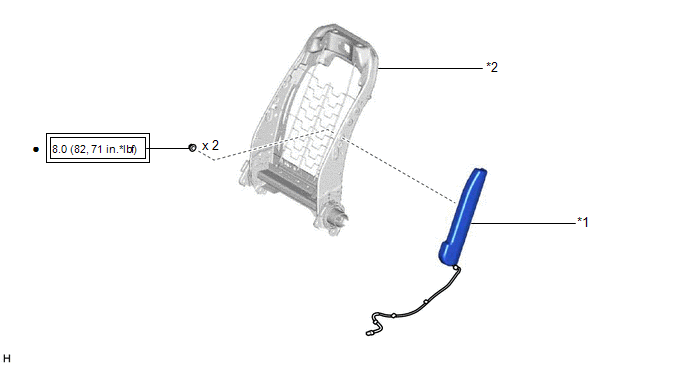

Fig 9: Front Seat Assembly (For TMMK Made Manual Seat) Replacement Components With Torque Specifications [06/2017 - 09/2019] (9 Of 13)
| Callout | Description | Callout | Description |
| *1 | FRONT SEAT AIRBAG ASSEMBLY | *2 | SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

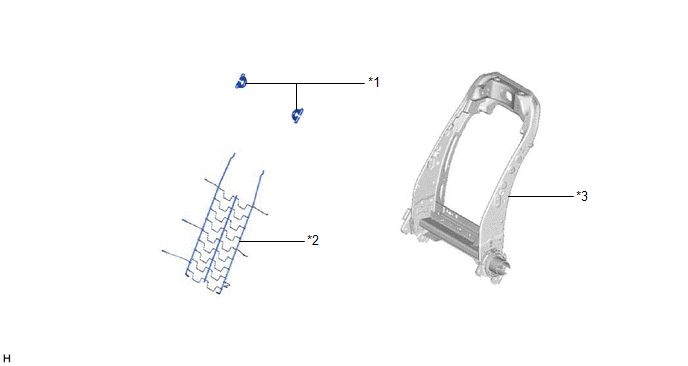

Fig 10: Front Seat Assembly (For TMMK Made Manual Seat) Replacement Components [06/2017 - 09/2019] (10 Of 13)
| *1 | FRONT NO. 2 SEATBACK HOOK | *2 | FRONT SEATBACK SPRING SUB-ASSEMBLY |
| *3 | FRONT SEATBACK FRAME SUB-ASSEMBLY | - | - |

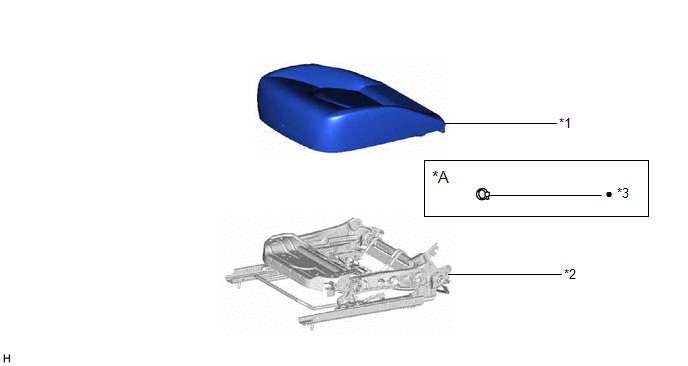

Fig 11: Front Seat Assembly (For TMMK Made Manual Seat) Replacement Components [06/2017 - 09/2019] (11 Of 13)
| *A | w/ Wire Harness Clamp | - | - |
| *1 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD | *2 | SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY |
| *3 | WIRE HARNESS CLAMP | - | - |
| • | Non-reusable part | - | - |

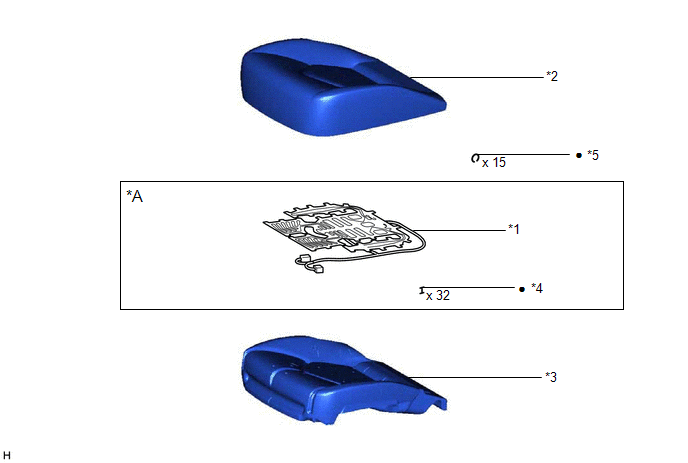

Fig 12: Front Seat Assembly (For TMMK Made Manual Seat) Replacement Components [06/2017 - 09/2019] (12 Of 13)
| *A | w/ Seat Heater System | - | - |
| *1 | FRONT SEAT CUSHION HEATER ASSEMBLY RH | *2 | SEPARATE TYPE FRONT SEAT CUSHION COVER |
| *3 | SEPARATE TYPE FRONT SEAT CUSHION PAD | *4 | TAG PIN |
| *5 | HOG RING | - | - |
| • | Non-reusable part | - | - |

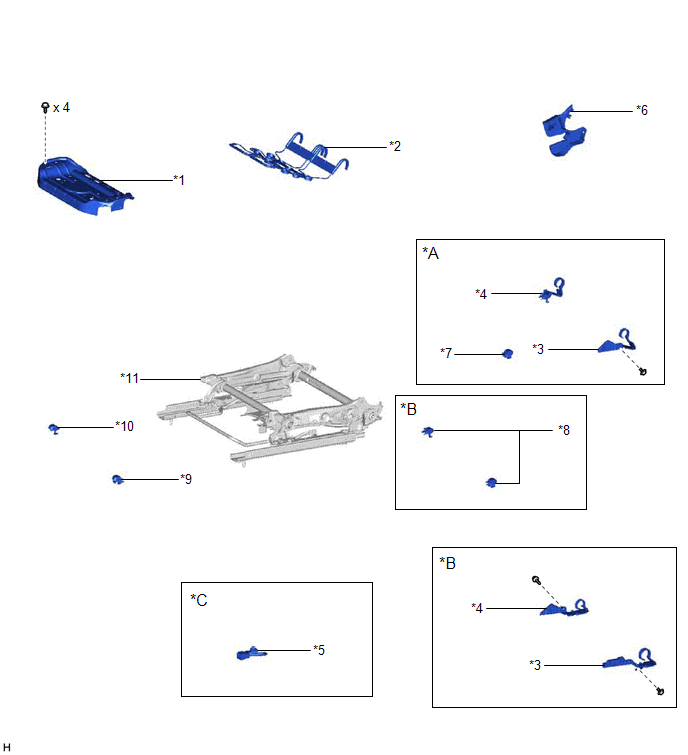

Fig 13: Front Seat Assembly (For TMMK Made Manual Seat) Replacement Components [06/2017 - 09/2019] (13 Of 13)
| *A | For Driver Side | *B | For Front Passenger Side |
| *C | w/ Seat Heater System | - | - |
| *1 | FRONT SEAT CUSHION PANEL SUB-ASSEMBLY | *2 | FRONT SEAT CUSHION SPRING SUB-ASSEMBLY |
| *3 | FRONT SEAT LOWER CUSHION SHIELD LH | *4 | FRONT SEAT LOWER CUSHION SHIELD RH |
| *5 | FRONT SEAT WIRE RH | *6 | LH SEAT RECLINING ADJUSTER INSIDE COVER |
| *7 | LH SEAT SEAT TRACK UPPER RAIL COVER | *8 | RH SEAT SEAT TRACK UPPER RAIL COVER |
| *9 | SEAT TRACK UPPER RAIL COVER LH | *10 | SEAT TRACK UPPER RAIL COVER RH |
| *11 | FRONT SEAT ADJUSTER ASSEMBLY | - | - |
