Components [03/2017 - 08/2018]

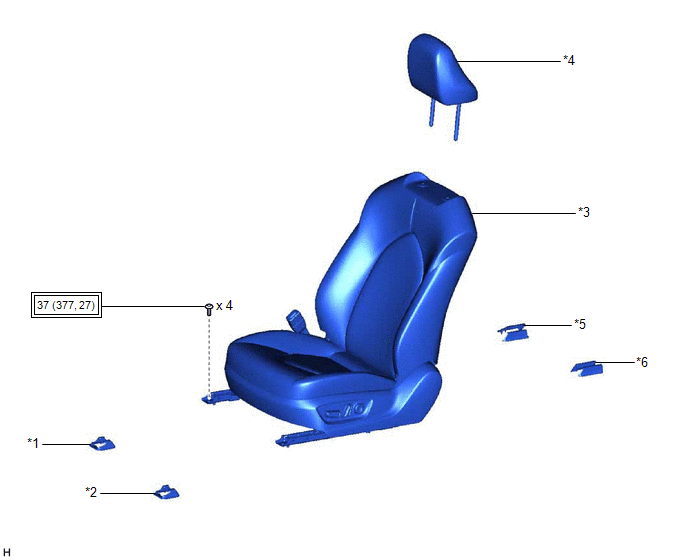

Fig 1: Front Seat Assembly (For TMC Made Power Seat) Replacement Components With Torque Specifications [03/2017 - 08/2018] (1 Of 14)
| Callout | Description | Callout | Description |
| *1 | FRONT INNER SEAT TRACK BRACKET COVER LH | *2 | FRONT OUTER SEAT TRACK BRACKET COVER LH |
| *3 | FRONT SEAT ASSEMBLY LH | *4 | FRONT SEAT HEADREST ASSEMBLY |
| *5 | REAR INNER SEAT TRACK BRACKET COVER LH | *6 | REAR OUTER SEAT TRACK BRACKET COVER LH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

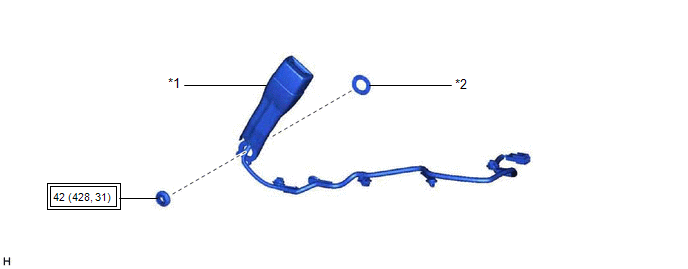

Fig 2: Front Seat Assembly (For TMC Made Power Seat) Replacement Components With Torque Specifications [03/2017 - 08/2018] (2 Of 14)
| Callout | Description | Callout | Description |
| *1 | FRONT SEAT INNER BELT ASSEMBLY LH | *2 | FRONT SEAT BELT ANCHOR PLATE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
Fig 3: Front Seat Assembly (For TMC Made Power Seat) Replacement Components [03/2017 - 08/2018] (3 Of 14)
| *1 | FRONT SEAT CUSHION SHIELD LH | *2 | FRONT SEAT FRONT CUSHION SHIELD LH |
| *3 | FRONT SEAT INNER CUSHION SHIELD LH | - | - |

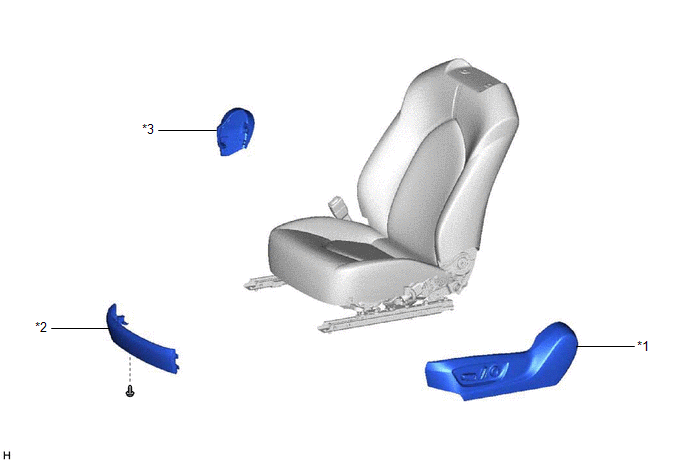

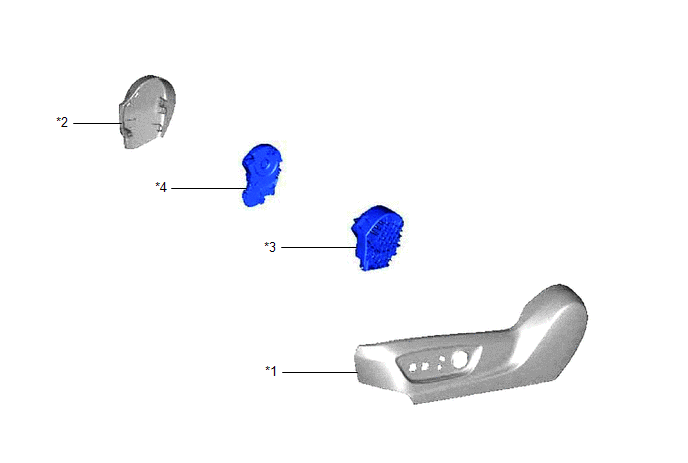

Fig 4: Front Seat Assembly (For TMC Made Power Seat) Replacement Components [03/2017 - 08/2018] (4 Of 14)
| *1 | FRONT POWER SEAT SWITCH LH | *2 | FRONT SEAT CUSHION SHIELD LH |
| *3 | RECLINING POWER SEAT SWITCH KNOB | *4 | SEAT ADJUSTER SHIELD CLAMP BRACKET LH |
| *5 | SLIDE & VERTICAL POWER SEAT SWITCH KNOB | - | - |
Fig 5: Front Seat Assembly (For TMC Made Power Seat) Replacement Components [03/2017 - 08/2018] (5 Of 14)
| *1 | FRONT SEAT CUSHION SHIELD LH | *2 | FRONT SEAT INNER CUSHION SHIELD LH |
| *3 | LOWER NO. 3 SEAT TRACK SPACER | *4 | LOWER NO. 4 SEAT TRACK SPACER |

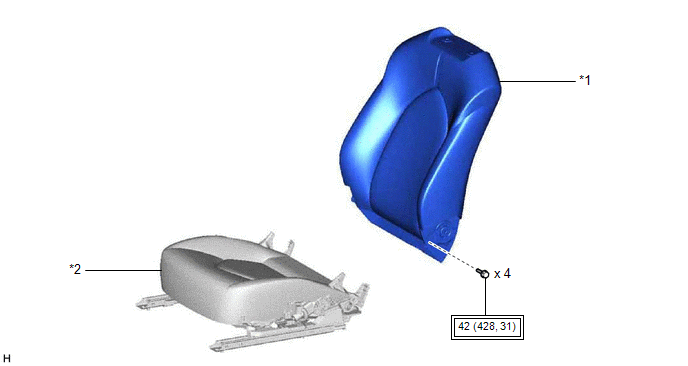

Fig 6: Front Seat Assembly (For TMC Made Power Seat) Replacement Components With Torque Specifications [03/2017 - 08/2018] (6 Of 14)
| Callout | Description | Callout | Description |
| *1 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | *2 | SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

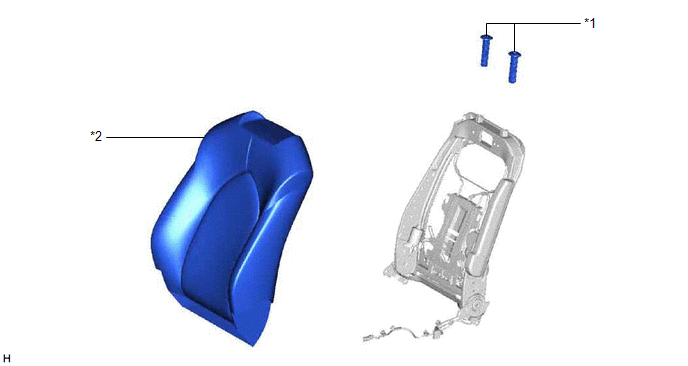

Fig 7: Front Seat Assembly (For TMC Made Power Seat) Replacement Components [03/2017 - 08/2018] (7 Of 14)
| *1 | FRONT SEAT HEADREST SUPPORT | *2 | SEPARATE TYPE FRONT SEATBACK COVER WITH PAD |

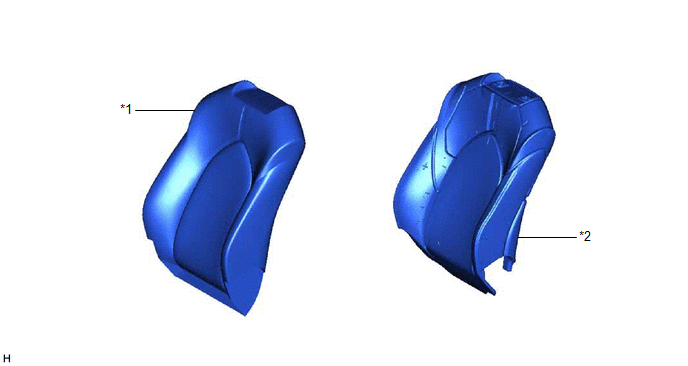

Fig 8: Front Seat Assembly (For TMC Made Power Seat) Replacement Components [03/2017 - 08/2018] (8 Of 14)
| *1 | SEPARATE TYPE FRONT SEATBACK COVER | *2 | SEPARATE TYPE FRONT SEATBACK PAD |

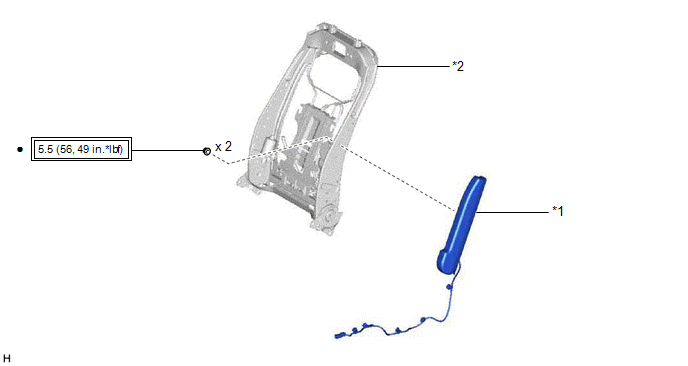

Fig 9: Front Seat Assembly (For TMC Made Power Seat) Replacement Components With Torque Specifications [03/2017 - 08/2018] (9 Of 14)
| Callout | Description | Callout | Description |
| *1 | FRONT SEAT AIRBAG ASSEMBLY LH | *2 | SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

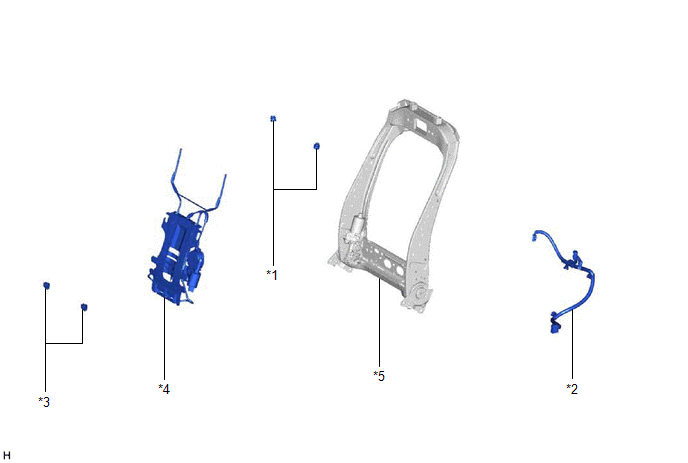

Fig 10: Front Seat Assembly (For TMC Made Power Seat) Replacement Components [03/2017 - 08/2018] (10 Of 14)
| *1 | FRONT NO. 2 SEATBACK HOOK | *2 | FRONT SEAT NO. 2 WIRE LH |
| *3 | FRONT SEATBACK EDGE PROTECTOR | *4 | LUMBAR SUPPORT ADJUSTER ASSEMBLY LH |
| *5 | FRONT SEATBACK FRAME SUB-ASSEMBLY LH | - | - |

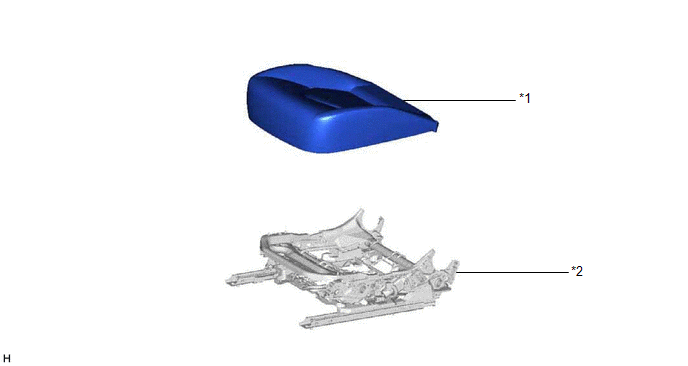

Fig 11: Front Seat Assembly (For TMC Made Power Seat) Replacement Components [03/2017 - 08/2018] (11 Of 14)
| *1 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD | *2 | SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY |

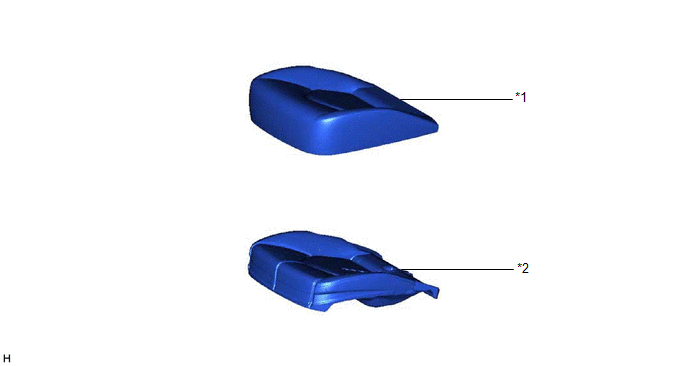

Fig 12: Front Seat Assembly (For TMC Made Power Seat) Replacement Components [03/2017 - 08/2018] (12 Of 14)
| *1 | SEPARATE TYPE FRONT SEAT CUSHION COVER | *2 | SEPARATE TYPE FRONT SEAT CUSHION PAD |

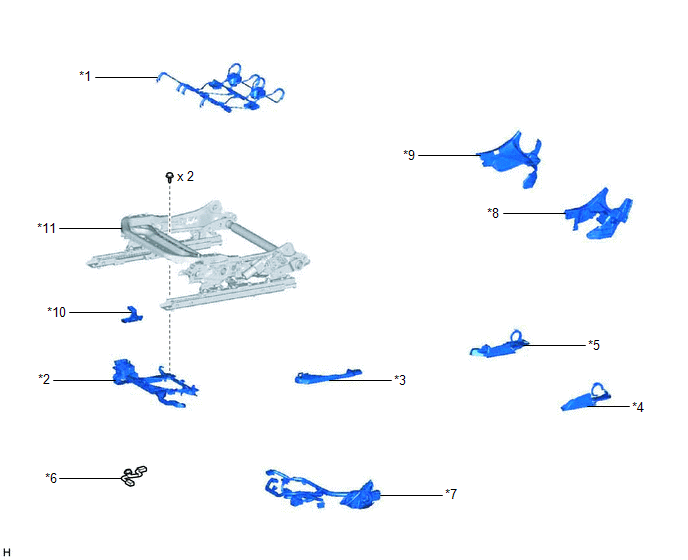

Fig 13: Front Seat Assembly (For TMC Made Power Seat) Replacement Components [03/2017 - 08/2018] (13 Of 14)
| *1 | FRONT SEAT CUSHION SPRING SUB-ASSEMBLY LH | *2 | FRONT SEAT CUSHION WIRE HARNESS HOLDER LH |
| *3 | FRONT SEAT LOWER CUSHION SHIELD | *4 | FRONT SEAT LOWER CUSHION SHIELD LH |
| *5 | FRONT SEAT LOWER CUSHION SHIELD RH | *6 | FRONT SEAT NO. 3 WIRE LH |
| *7 | FRONT SEAT WIRE LH | *8 | LH SEAT RECLINING ADJUSTER INSIDE COVER LH |
| *9 | LH SEAT RECLINING ADJUSTER INSIDE COVER RH | *10 | SEAT SLIDE POSITION SENSOR PROTECTOR |
| *11 | FRONT SEAT ADJUSTER ASSEMBLY LH | - | - |

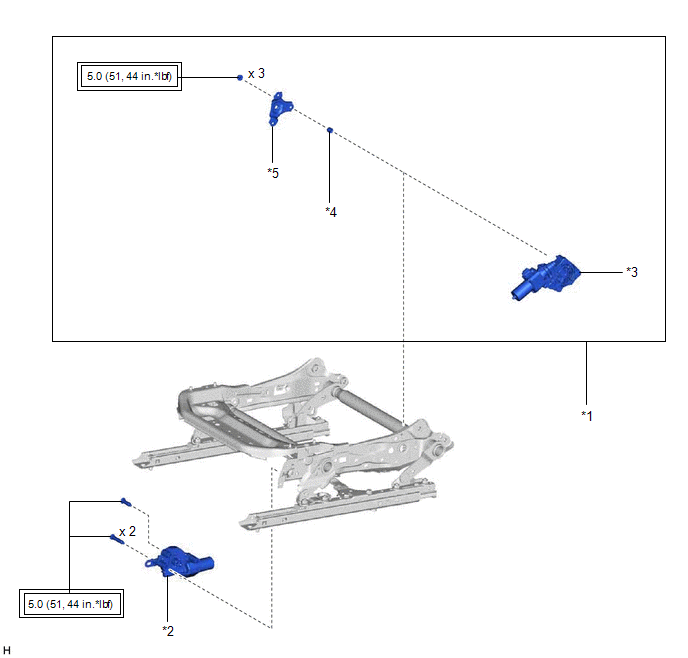

Fig 14: Front Seat Assembly (For TMC Made Power Seat) Replacement Components With Torque Specifications [03/2017 - 08/2018] (14 Of 14)
| Callout | Description | Callout | Description |
| *1 | POWER SEAT LIFTER MOTOR ASSEMBLY LH | *2 | POWER SEAT TILT MOTOR ASSEMBLY LH |
| *3 | FRONT SEAT VERTICAL HOUSING SUB-ASSEMBLY LH | *4 | VERTICAL ADJUSTER SPACER |
| *5 | FRONT SEAT ADJUSTER PLATE LH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
