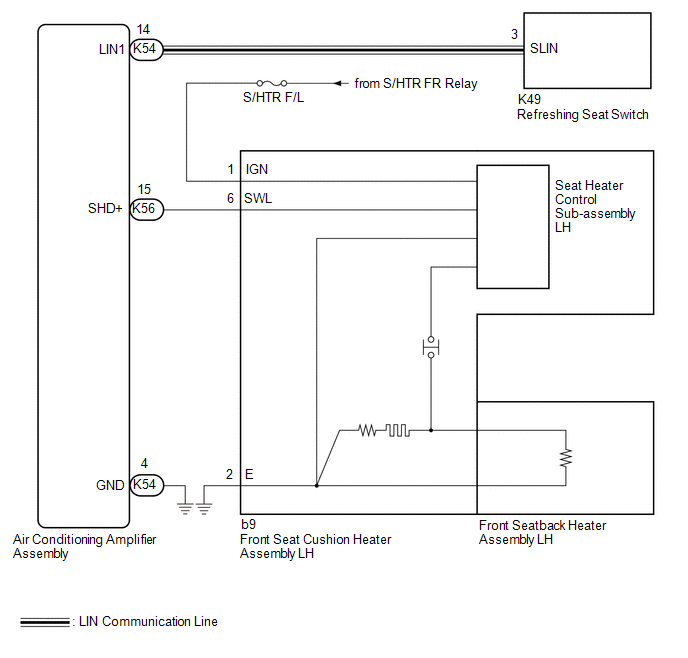

Seat Heater for Front Left Seat does not Operate [06/2017 - ]: Wiring Diagram

GTY760472

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
