Seat Heater for Front Left Seat does not Operate [06/2017 - ]: Procedure

  1. CLEAR DTC
    1. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [06/2017 - ]

      Body Electrical > Air Conditioner > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  2

  2. CHECK FOR DTC
    1. Check for DTCs.

      Refer to DTC CHECK / CLEAR [06/2017 - ]

      Body Electrical > Air Conditioner > Trouble Codes

      OK

      DTC B14B5 or B14C1 is not output.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [06/2017 - ]

    Result:

    OK

    See step  3

  3. PERFORM ACTIVE TEST USING TECHSTREAM
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Air Conditioner / Active Test.
    5. Perform the Active Test according to the display on the Techstream.

      Body Electrical > Air Conditioner > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Front Left Seat Heater Front seat LH side seat heater operation OFF or ON -

      Body Electrical > Air Conditioner > Active Test

      Tester Display
      Front Left Seat Heater

      OK

      The seat heater operates normally.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REFRESHING SEAT SWITCH. Refer to  REMOVAL [06/2017 - ]

    Result:

    NG

    See step  4

  4. INSPECT FRONT SEATBACK HEATER ASSEMBLY LH
    1. Remove the front seatback heater assembly LH.

      Refer to REMOVAL [06/2017 - 10/2020] , or refer to REMOVAL [10/2020 - ]

    2. Inspect the front seatback heater assembly LH.

      Refer to INSPECTION [06/2017 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FRONT SEATBACK HEATER ASSEMBLY LH. Refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (IG POWER SUPPLY - FRONT SEAT CUSHION HEATER ASSEMBLY LH - BODY GROUND)
    1. Disconnect the b9 front seat cushion heater assembly LH connector.
      GTY758860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Front Seat Cushion Heater Assembly LH)
    2. Measure the voltage and resistance according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      b9-1 (IGN) - Body ground Ignition switch ON 11 to 14 V
      b9-1 (IGN) - Body ground Ignition switch off Below 1 V

      Standard Resistance

      Tester Connection Condition Specified Condition
      b9-2 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  6

  6. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - FRONT SEAT CUSHION HEATER ASSEMBLY LH)
    1. Reconnect the b9 front seat cushion heater assembly LH connector.
      GTY760414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Air Conditioning Amplifier Assembly)
    2. Disconnect the K56 air conditioning amplifier assembly connector.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      K56-15 (SHD+) - Body ground Ignition switch ON 5 to 13 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  8

    Result:

    OK

    See step  7

  7. CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Reconnect the K56 air conditioning amplifier assembly connector.
    2. Remove the air conditioning amplifier assembly with its connectors still connected.

      Refer to REMOVAL [06/2017 - ]

    3. Measure the voltage according to the value(s) in the table below.

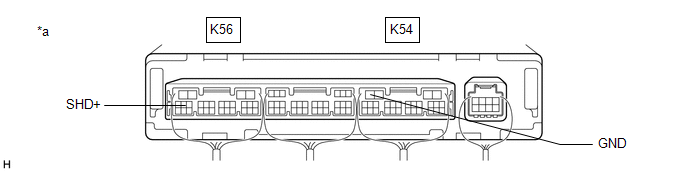

      GTY742353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Air Conditioning Amplifier Assembly)      		 - -

      Standard Voltage

      Tester Connection Condition Specified Condition
      K56-15 (SHD+) - K54-4 (GND) Ignition switch ON, refreshing seat switch on (LO) Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FRONT SEAT CUSHION HEATER ASSEMBLY LH. Refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

    Result:

    NG

    REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to  REMOVAL [06/2017 - ]

  8. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - FRONT SEAT CUSHION HEATER ASSEMBLY LH)
    1. Disconnect the b9 front seat cushion heater assembly LH connector.
    2. Disconnect the K56 air conditioning amplifier assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K56-15 (SHD+) - b9-6 (SWL) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FRONT SEAT CUSHION HEATER ASSEMBLY LH. Refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
