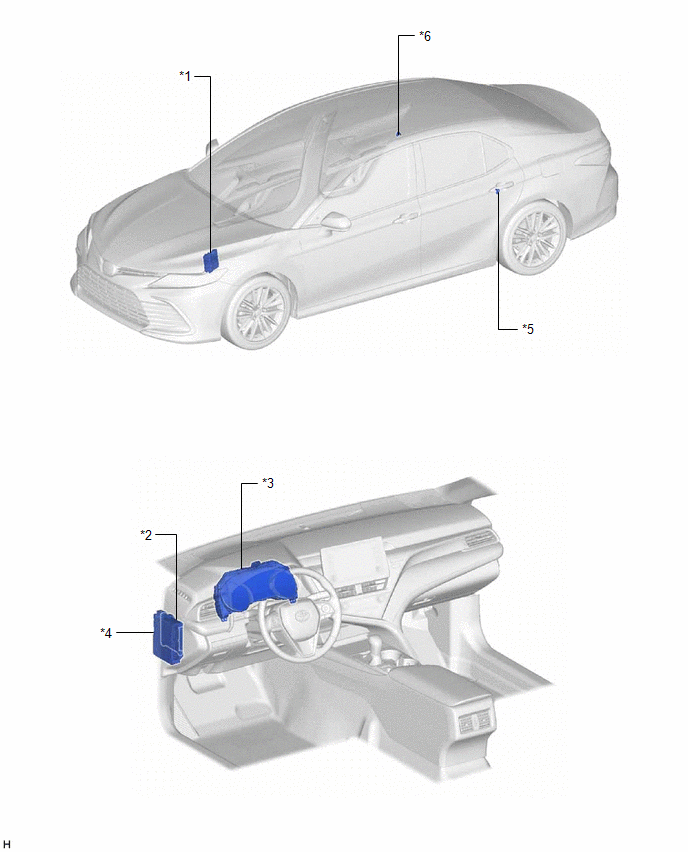

| *1 |
ECM |
*2 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 |
COMBINATION METER ASSEMBLY |
*4 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 4 FUSE
- ECU-ACC FUSE
- ECU-DCC NO. 2 FUSE |
| *5 |
REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) |
*6 |
REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) |
