Removal [08/2021 - ]: Procedure

  1. REMOVE VANITY LIGHT ASSEMBLY

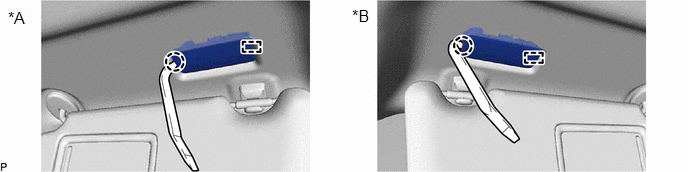

    1. Using a moulding remover, disengage the claw.
      GTY1027106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A For LH Side *B For RH Side
    2. Disengage the guide and pull out the vanity light assembly.
    3. Disconnect the connector to remove the vanity light assembly.
