Removal [03/2017 - ]: Procedure

  1. REMOVE ROOM LIGHT ASSEMBLY (for Bulb Type)

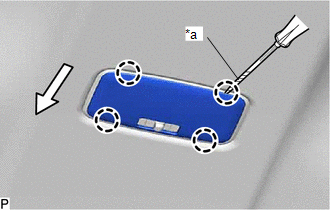

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the room light lens.
      GTY747048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Front

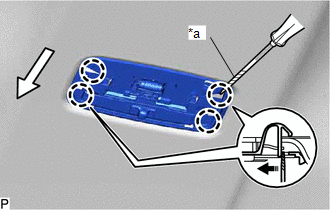

    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws as shown in the illustration to separate the room light housing.
      GTY748824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Front
      Remove in this Direction

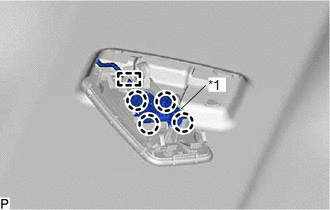

    3. Disengage the clamp.
      GTY751049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Room Light Switch Base
    4. Disengage the 4 claws to disconnect the room light switch base from the room light housing.
  2. REMOVE REAR ROOM LIGHT BULB (for Bulb Type)
    1. Remove the rear room light bulb from the room light switch base.
  3. REMOVE SPOT LIGHT ASSEMBLY (for LED Type)

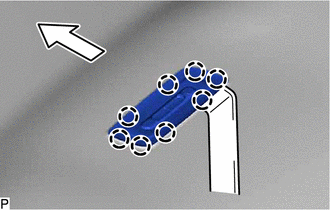

    1. Using a moulding remover, disengage the 8 claws.
      GTY742300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front
    2. Disconnect the connector to remove the spot light assembly.
