Removal [03/2017 - 06/2017]: Procedure

  1. REMOVE ROOF CONSOLE BOX ASSEMBLY
    1. For Normal Roof:

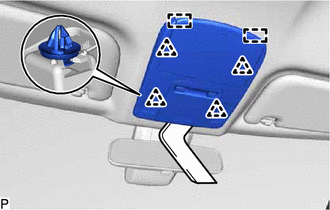

      1. Using a moulding remover, disengage the 4 clips.
        GTY773030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 2 guides.
    2. For Moon Roof:

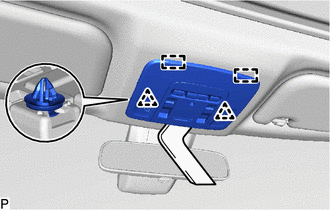

      1. Using a moulding remover, disengage the 2 clips.
        GTY760993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 2 guides.
    3. Disconnect each connector to remove the roof console box assembly.
