Rear Door Courtesy Switch Circuit [03/2017 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Data List.
5. Read the Data List according to the display on the Techstream.

   Body Electrical > Main Body > Data List

   Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
   RR Door Courtesy SW	Rear door courtesy light switch assembly RH signal	OFF or ON	OFF: Rear door RH closed ON: Rear door RH open	-
   RL Door Courtesy SW	Rear door courtesy light switch assembly LH signal	OFF or ON	OFF: Rear door LH closed ON: Rear door LH open	-

   Body Electrical > Main Body > Data List

   Tester Display
   RR Door Courtesy SW
   RL Door Courtesy SW

   OK

   Normal conditions listed above are displayed.

   Result

   Result	Proceed to
   OK	A
   "RR Door Courtesy SW" is not normal	B
   "RL Door Courtesy SW" is not normal	C

Result:

A

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [03/2017 - 06/2017]  , or refer to  PROBLEM SYMPTOMS TABLE [06/2017 - 09/2019]  , or refer to  PROBLEM SYMPTOMS TABLE [09/2019 - 08/2021]  , or refer to  PROBLEM SYMPTOMS TABLE [08/2021 - ]

Result:

C

See step  5

Result:

B

See step  2

1. Remove the rear door courtesy light switch assembly RH.

   Refer to REMOVAL [03/2017 - 06/2017] , or refer to REMOVAL [06/2017 - 09/2019] , or refer to REMOVAL [09/2019 - 10/2020] , or refer to REMOVAL [10/2020 - ]

2. Inspect the rear door courtesy light switch assembly RH.

   Refer to INSPECTION [03/2017 - ]

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH. Refer to  REMOVAL [03/2017 - 06/2017]  , or refer to  REMOVAL [06/2017 - 09/2019]  , or refer to  REMOVAL [09/2019 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

Result:

OK

See step  3

1. Disconnect the 3A instrument panel junction block assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R6-1 - 3A-31	Always	Below 1 Ω
   R6-1 or 3A-31 - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the instrument panel junction block assembly.

   Refer to REMOVAL [03/2017 - 06/2017] , or refer to REMOVAL [06/2017 - 10/2020] , or refer to REMOVAL [10/2020 - ]

2. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

   Refer to REMOVAL [03/2017 - 06/2017] , or refer to REMOVAL [06/2017 - 10/2020] , or refer to REMOVAL [10/2020 - ]

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition

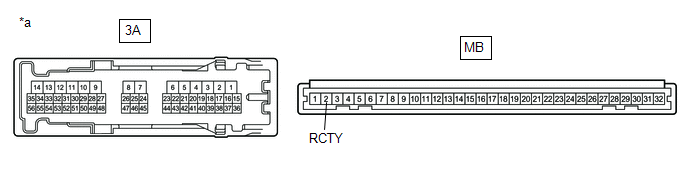

   3A-31 - MB-2 (RCTY)	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [03/2017 - 06/2017]  , or refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

Result:

NG

REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [03/2017 - 06/2017]  , or refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

1. Remove the rear door courtesy light switch assembly LH.

   Refer to REMOVAL [03/2017 - 06/2017] , or refer to REMOVAL [06/2017 - 09/2019] , or refer to REMOVAL [09/2019 - 10/2020] , or refer to REMOVAL [10/2020 - ]

2. Inspect the rear door courtesy light switch assembly LH.

   Refer to INSPECTION [03/2017 - ]

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH. Refer to  REMOVAL [03/2017 - 06/2017]  , or refer to  REMOVAL [06/2017 - 09/2019]  , or refer to  REMOVAL [09/2019 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

Result:

OK

See step  6

1. Disconnect the 3D instrument panel junction block assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R7-1 - 3D-24	Always	Below 1 Ω
   R7-1 or 3D-24 - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  7

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the instrument panel junction block assembly.

   Refer to REMOVAL [03/2017 - 06/2017] , or refer to REMOVAL [06/2017 - 10/2020] , or refer to REMOVAL [10/2020 - ]

2. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

   Refer to REMOVAL [03/2017 - 06/2017] , or refer to REMOVAL [06/2017 - 10/2020] , or refer to REMOVAL [10/2020 - ]

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition

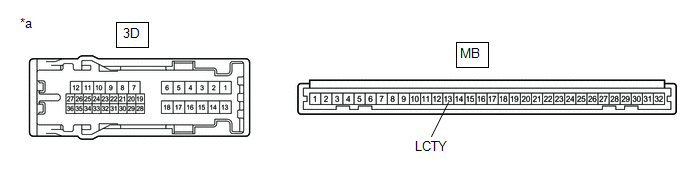

   3D-24 - MB-13 (LCTY)	Always	Below 1 Ω
