Lighting System (Int) - Diagnostics (2 Of 2) & Circuit Tests (Except Hybrid)
>>
Lighting System
>>
Interior Light Circuit [09/2019 - ]
>>
Wiring Diagram

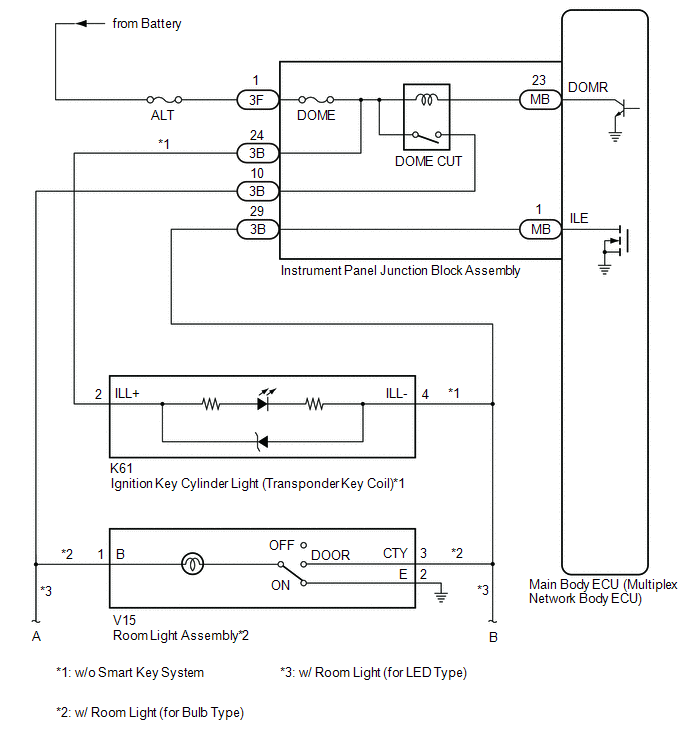

Interior Light Circuit [09/2019 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
