Interior Light Circuit [03/2017 - 06/2017]: Wiring Diagram

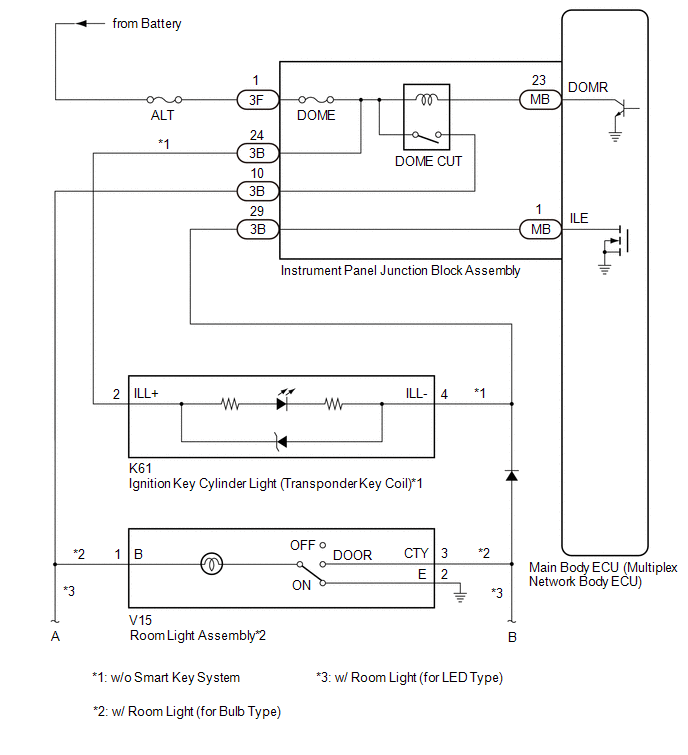

GTY748856

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

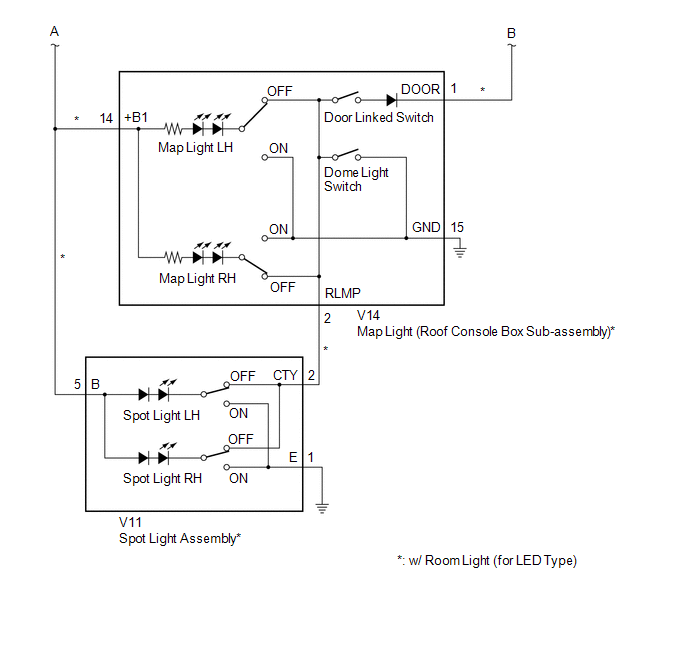

GTY746937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
