Footwell Light Circuit [06/2017 - ]: Procedure

  1. PERFORM ACTIVE TEST USING TECHSTREAM
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Main Body / Active Test.
    5. Perform the Active Test according to the display on the Techstream.

      Body Electrical > Main Body > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Fr Foot Light Footwell light (No. 1 interior illumination light assembly) OFF or ON Preconditions for using the Active Test to check dimmer controlled illumination:
      • Ignition switch ON
      • Shift lever is in any position other than P

      Body Electrical > Main Body > Active Test

      Tester Display
      Fr Foot Light

      OK

      Footwell lights come on.

      Result

      Result Proceed to
      OK A
      NG (Footwell light LH does not come on) B
      NG (Footwell light RH does not come on) C
      NG (Footwell light LH and RH do not come on) D

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2017 - 08/2018]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2018 - 09/2019]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [09/2019 - 03/2020]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [03/2020 - 10/2020]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2020 - 08/2021]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2021 - ]

    Result:

    C

    See step  6

    Result:

    D

    See step  10

    Result:

    B

    See step  2

  2. INSPECT FOOTWELL LIGHT LH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY)
    1. Remove the footwell light LH (No. 1 interior illumination light assembly).

      Refer to REMOVAL [06/2017 - ]

    2. Inspect the footwell light LH (No. 1 interior illumination light assembly).

      Refer to INSPECTION [06/2017 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FOOTWELL LIGHT LH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY). Refer to  REMOVAL [06/2017 - ]

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (FOOTWELL LIGHT LH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY) - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)
    1. Disconnect the 3A and 3B instrument panel junction block assembly connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K84-1 (E) - 3A-36 Always Below 1 Ω
      K84-2 (B) - 3B-27 Always Below 1 Ω
      K84-1 (E) or 3A-36 - Body ground Always 10 kΩ or higher
      K84-2 (B) or 3B-27 - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
    GTY747842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Instrument Panel Junction Block Assembly)    		 - -
    1. Disconnect the 3F instrument panel junction block assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3B-27 - 3F-1 Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

    Result:

    OK

    See step  5

  5. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

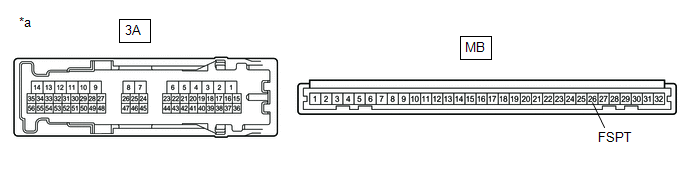

    GTY749721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Instrument Panel Junction Block Assembly)    		 - -
    1. Remove the instrument panel junction block assembly.

      Refer to REMOVAL [06/2017 - 10/2020] , or refer to REMOVAL [10/2020 - ]

    2. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

      Refer to REMOVAL [06/2017 - 10/2020] , or refer to REMOVAL [10/2020 - ]

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3A-36 - MB-26 (FSPT) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

    Result:

    NG

    REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

  6. INSPECT FOOTWELL LIGHT RH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY)
    1. Remove the footwell light RH (No. 1 interior illumination light assembly).

      Refer to REMOVAL [06/2017 - ]

    2. Inspect the footwell light RH (No. 1 interior illumination light assembly).

      Refer to INSPECTION [06/2017 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FOOTWELL LIGHT RH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY). Refer to  REMOVAL [06/2017 - ]

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (FOOTWELL LIGHT RH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY) - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)
    1. Disconnect the 3A and 3B instrument panel junction block assembly connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K83-1 (E) - 3A-37 Always Below 1 Ω
      K83-2 (B) - 3B-25 Always Below 1 Ω
      K83-1 (E) or 3A-37 - Body ground Always 10 kΩ or higher
      K83-2 (B) or 3B-25 - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  8

  8. CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
    GTY747842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Instrument Panel Junction Block Assembly)    		 - -
    1. Disconnect the 3F instrument panel junction block assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3B-25 - 3F-1 Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

    Result:

    OK

    See step  9

  9. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
    GTY749721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Instrument Panel Junction Block Assembly)    		 - -
    1. Remove the instrument panel junction block assembly.

      Refer to REMOVAL [06/2017 - 10/2020] , or refer to REMOVAL [10/2020 - ]

    2. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

      Refer to REMOVAL [06/2017 - 10/2020] , or refer to REMOVAL [10/2020 - ]

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3A-37 - MB-26 (FSPT) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

    Result:

    NG

    REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

  10. CHECK HARNESS AND CONNECTOR (POWER SOURCE - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)
    1. Disconnect the 3F instrument panel junction block assembly connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      3F-1 - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  11

  11. CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
    GTY747843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Instrument Panel Junction Block Assembly)    		 - -
    1. Disconnect the 3B instrument panel junction block assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3B-27 - 3F-1 Always Below 1 Ω
      3B-25 - 3F-1 Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

    Result:

    OK

    See step  12

  12. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
    GTY749721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Instrument Panel Junction Block Assembly)    		 - -
    1. Remove the instrument panel junction block assembly.

      Refer to REMOVAL [06/2017 - 10/2020] , or refer to REMOVAL [10/2020 - ]

    2. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

      Refer to REMOVAL [06/2017 - 10/2020] , or refer to REMOVAL [10/2020 - ]

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3A-36 - MB-26 (FSPT) Always Below 1 Ω
      3A-37 - MB-26 (FSPT) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]

    Result:

    NG

    REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - ]
