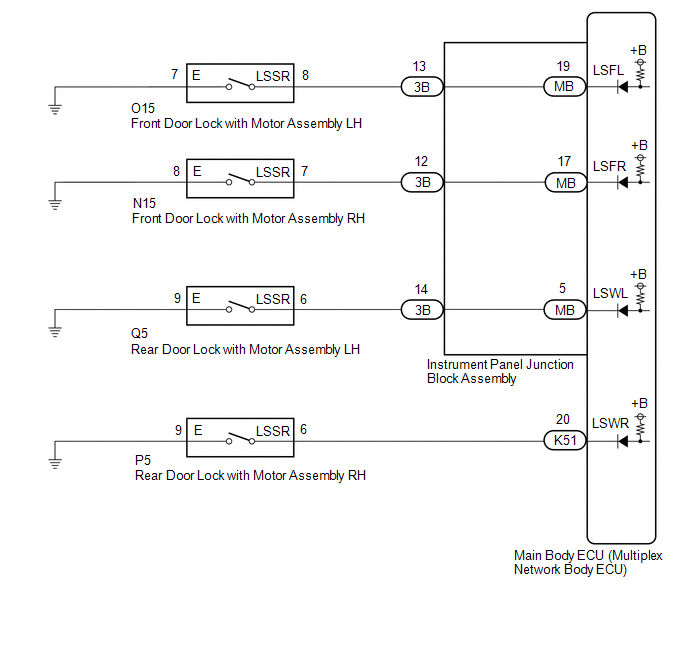

Door Unlock Detection Switch Circuit [03/2017 - ]: Wiring Diagram

GTY751728

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
