DTC B15CB-11: Telephone Main Antenna Circuit Short to Ground; DTC B15CB-13: Telephone Main Antenna Circuit Open [10/2020 - ]: Procedure
- CHECK DTC
- Turn the engine switch off.
- Connect the Techstream to the DLC3.
- Turn the engine switch is on (IG) and wait for 10 seconds or more.
- Turn the Techstream on.
- Clear the DTCs.
Body Electrical > Telematics > Clear DTCs
- Recheck for DTCs.
Body Electrical > Telematics > Trouble Codes
OK
No DTCs are output.
Result
Proceed to OK NG
Result:
OK
CHECK FOR INTERMITTENT PROBLEMS. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2020 - 08/2021] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2021 - ]
Result:
NG
See step 2
- INSPECT TELEPHONE AND GPS ANTENNA ASSEMBLY (for Roof Side)
- Disconnect the telephone and GPS antenna assembly (for Roof Side) connector.
*a Component without harness connected
(Telephone and GPS Antenna Assembly (for Roof Side)) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 4 - 4a Always 9 to 11 kΩ Result
Proceed to OK NG
Result:
NG
REPLACE TELEPHONE AND GPS ANTENNA ASSEMBLY (for Roof Side). Refer to REMOVAL [10/2020 - ]
Result:
OK
See step 3
- Disconnect the telephone and GPS antenna assembly (for Roof Side) connector.
- INSPECT TELEPHONE AND GPS ANTENNA CORD (NO. 5 ANTENNA CORD SUB-ASSEMBLY)
- Disconnect the K telephone and GPS antenna cord (No. 5 antenna cord sub-assembly) connector.

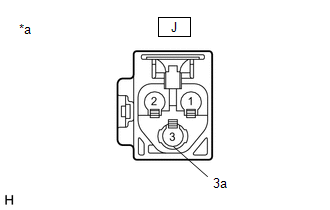

*a Component without harness connected (Telephone and GPS Antenna Cord (No. 5 Antenna Cord Sub-assembly)) - Disconnect the J telephone and GPS antenna cord (No. 5 antenna cord sub-assembly) connector.
*a Component without harness connected (Telephone and GPS Antenna Cord (No. 5 Antenna Cord Sub-assembly)) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition K-4 - J-3 Always Below 1 Ω K-4 or J-3 - Body ground Always 10 kΩ or higher K-4a - J-3a Always Below 1 Ω K-4a or J-3a - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPLACE TELEPHONE AND GPS ANTENNA CORD (NO. 5 ANTENNA CORD SUB-ASSEMBLY). Refer to REMOVAL [10/2020 - ]
Result:
OK
See step 4
- Disconnect the K telephone and GPS antenna cord (No. 5 antenna cord sub-assembly) connector.
- INSPECT TELEPHONE AND GPS ANTENNA CORD (NO. 2 ANTENNA CORD SUB-ASSEMBLY)

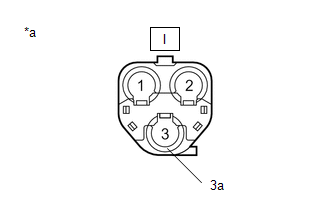

- Disconnect the I telephone and GPS antenna cord (No. 2 antenna cord sub-assembly) connector.

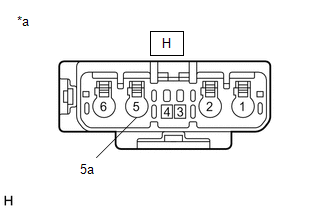

*a Component without harness connected (Telephone and GPS Antenna Cord (No. 2 Antenna Cord Sub-assembly)) - Disconnect the H telephone and GPS antenna cord (No. 2 antenna cord sub-assembly) connector.
*a Component without harness connected (Telephone and GPS Antenna Cord (No. 2 Antenna Cord Sub-assembly)) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition I-3 - H-5 Always Below 1 Ω I-3 or H-5 - Body ground Always 10 kΩ or higher I-3a - H-5a Always Below 1 Ω I-3a or H-5a - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPLACE TELEPHONE AND GPS ANTENNA CORD (NO. 2 ANTENNA CORD SUB-ASSEMBLY). Refer to REMOVAL [10/2020 - ]
Result:
OK
See step 5
- Disconnect the I telephone and GPS antenna cord (No. 2 antenna cord sub-assembly) connector.
- INSPECT TELEPHONE AND GPS ANTENNA CORD (for Type A)

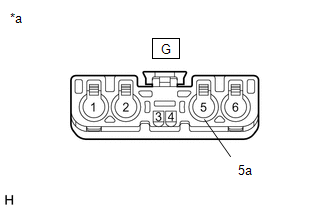

- Disconnect the G telephone and GPS antenna cord (for Type A) connector.

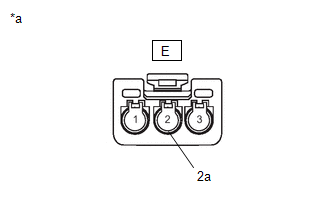

*a Component without harness connected (Telephone and GPS Antenna Cord (for Type A)) - Disconnect the E telephone and GPS antenna cord (for Type A) connector.
*a Component without harness connected (Telephone and GPS Antenna Cord (for Type A)) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G-5 - E-2 Always Below 1 Ω G-5 or E-2 - Body ground Always 10 kΩ or higher G-5a - E-2a Always Below 1 Ω G-5a or E-2a - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPLACE TELEPHONE AND GPS ANTENNA CORD (for Type A). Refer to REMOVAL [10/2020 - ]
Result:
OK
See step 6
- Disconnect the G telephone and GPS antenna cord (for Type A) connector.
- INSPECT TELEPHONE AND GPS ANTENNA CORD (for Type B)

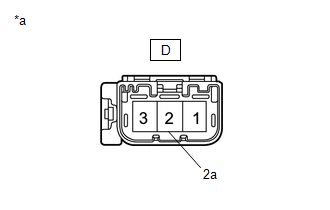

- Disconnect the D telephone and GPS antenna cord (for Type B) connector.
*a Component without harness connected (Telephone and GPS Antenna Cord (for Type B)) - Disconnect the C telephone and GPS antenna cord (for Type B) connector.
*a Component without harness connected (Telephone and GPS Antenna Cord (for Type B)) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition D-2 - C-1 Always Below 1 Ω D-2 or C-1 - Body ground Always 10 kΩ or higher D-2a - C-1a Always Below 1 Ω D-2a or C-1a - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPLACE TELEPHONE AND GPS ANTENNA CORD (for Type B). Refer to REMOVAL [10/2020 - ]
Result:
OK
See step 7
- Disconnect the D telephone and GPS antenna cord (for Type B) connector.
- REPLACE DCM (TELEMATICS TRANSCEIVER)
- Replace the DCM (telematics transceiver).
Refer to REMOVAL [10/2020 - ]
NOTE:- The engine switch must be off.
- Do not swap the DCM (telematics transceiver) with one from another vehicle.
Result
Proceed to NEXT
Result:
NEXT
PERFORM DCM ACTIVATION. Refer to DCM ACTIVATION [09/2019 - ]
- Replace the DCM (telematics transceiver).
