Safety Connect System
>>
DTC B15C5: Manual Button Malfunction [06/2017 - 09/2019]
>>
Wiring Diagram
DTC B15C5: Manual Button Malfunction [06/2017 - 09/2019]: Wiring Diagram

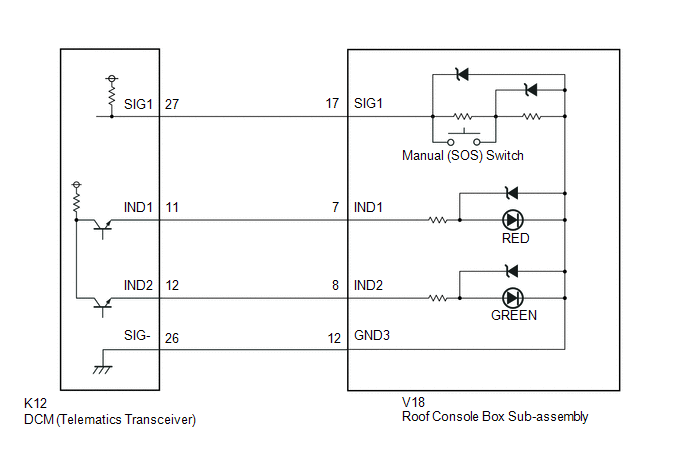

w/o Sliding Roof
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/ Sliding Roof
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
