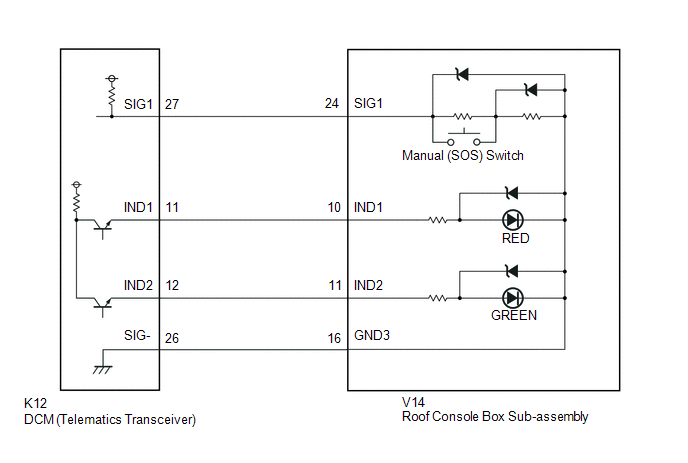

DTC B15C5: Manual Button Malfunction [03/2017 - 06/2017]: Wiring Diagram

GTY748164

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
