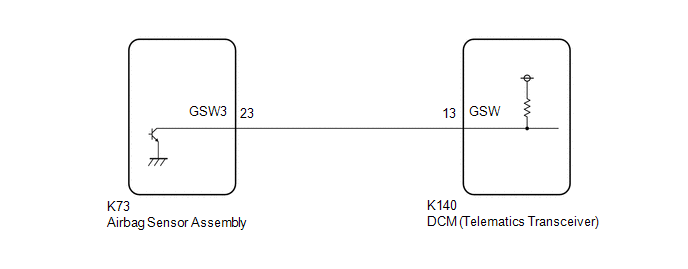

DTC B15C4-64: Airbag Signal Signal Plausibility Failure [09/2019 - ]: Wiring Diagram

GTY902163

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
