DTC B1571-11: Indicator (Green) Circuit Short to Ground; DTC B1571-13: Indicator (Green) Circuit Open [09/2019 - ]: Wiring Diagram

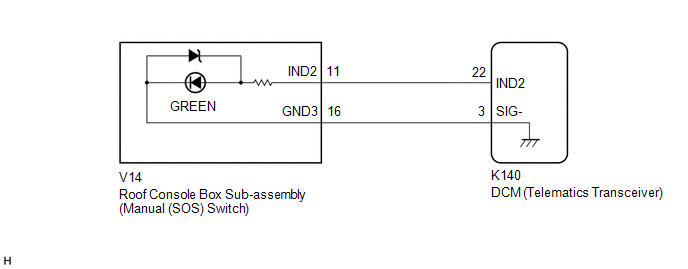

w/ Sliding Roof

GTY926474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Sliding Roof

GTY839520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
