Removal [06/2017 - 09/2019]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [06/2017 - 10/2020]

  2. REMOVE NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  3. REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET
    1. Disconnect the connector.
      GTY762553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws.
    3. Remove the 2 screws and navigation antenna assembly with bracket.
      GTY762554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NAVIGATION ANTENNA ASSEMBLY

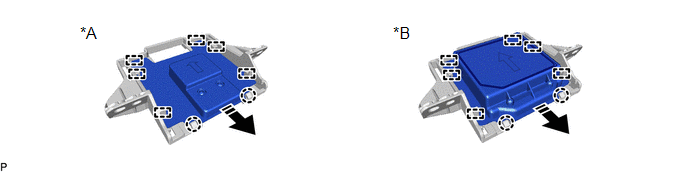

    1. Disengage the 2 claws and 6 guides to remove the navigation antenna assembly as shown in the illustration.
      GTY773831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Manual (SOS) Switch *B w/ Manual (SOS) Switch
      Remove in this Direction - -
  5. REMOVE NAVIGATION ANTENNA BRACKET
