Installation [06/2017 - 09/2019]: Procedure

  1. INSTALL NAVIGATION ANTENNA BRACKET
  2. INSTALL NAVIGATION ANTENNA ASSEMBLY

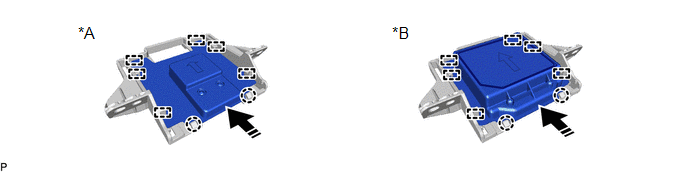

    1. Engage the 6 guides and 2 claws to install the navigation antenna assembly as shown in the illustration.
      GTY774136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Manual (SOS) Switch *B w/ Manual (SOS) Switch
      Install in this Direction - -
  3. INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET
    1. Install the navigation antenna assembly with bracket with the 2 screws.
    2. Engage the 2 claws.
    3. Connect the connector.
  4. INSTALL NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  5. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to INSTALLATION [06/2017 - 10/2020]
