DTC B1579: Voice Recognition Microphone Disconnected [09/2019 - ]: Wiring Diagram

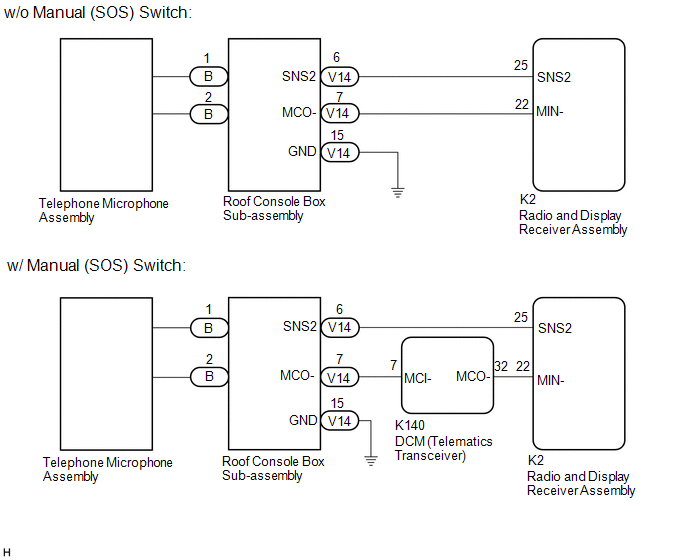

w/ Sliding Roof

GTY934025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

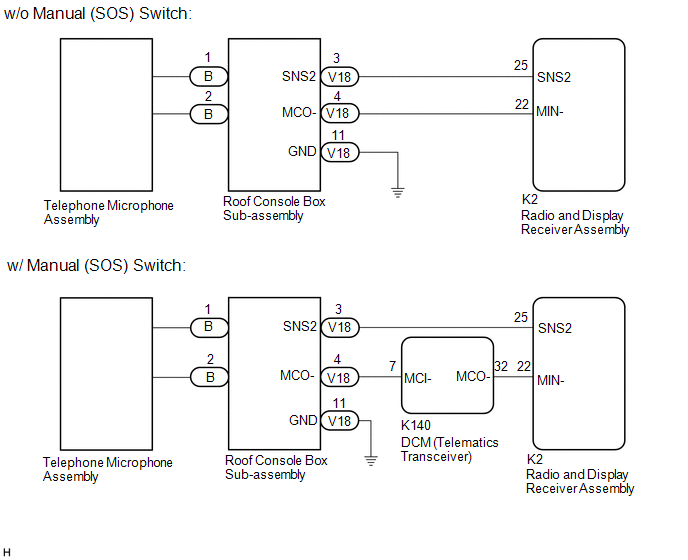

w/o Sliding Roof

GTY873859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
