DTC B1579: Voice Recognition Microphone Disconnected [06/2017 - 09/2019]: Wiring Diagram

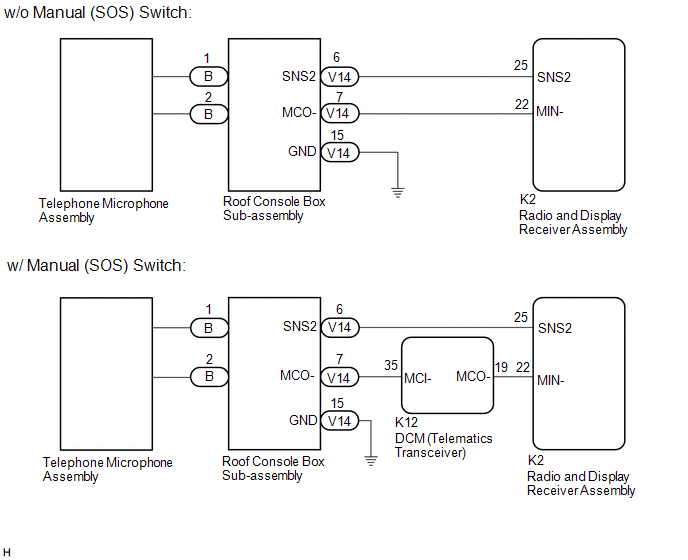

w/ Sliding Roof

GTY770855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

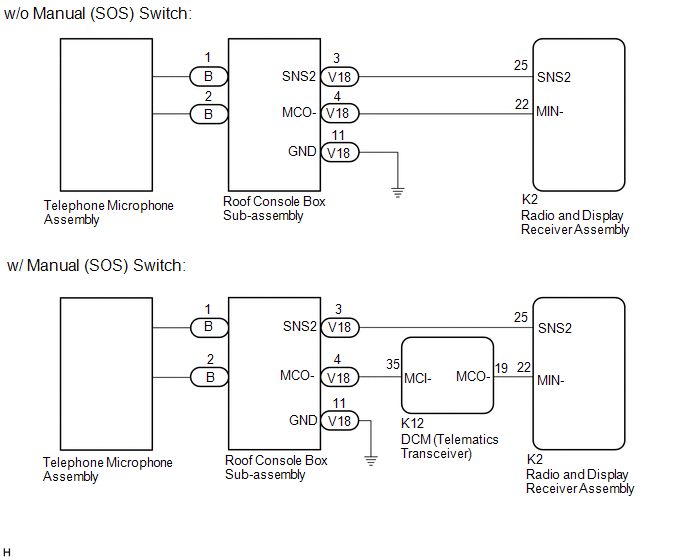

w/o Sliding Roof

GTY751139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
