Home >> Toyota >> 2021 >> Camry LE, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Navigation System - Diagnostic Codes & Symptom Tests (1 Of 2) (Except Hybrid) >> Navigation System >> DTC B1324: Lost Communication with Meter; DTC B1325: Lost Communication with HUD [06/2017 - ] >> Wiring Diagram

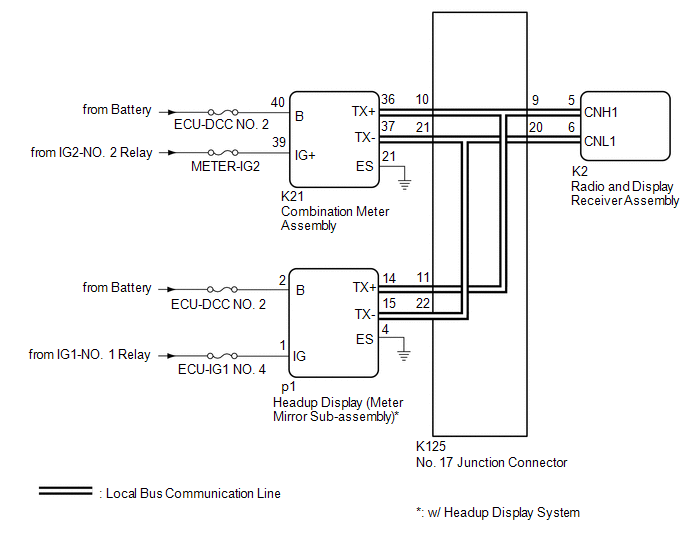

DTC B1324: Lost Communication with Meter; DTC B1325: Lost Communication with HUD [06/2017 - ]: Wiring Diagram

GTY768921

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
