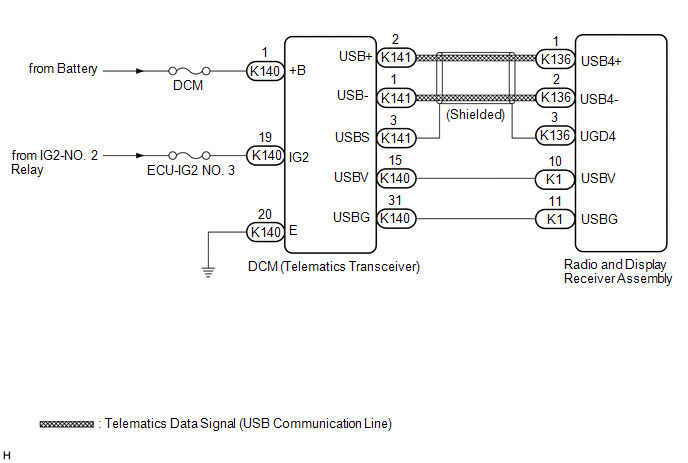

DTC B15DB: Telematics Transceiver Disconnected [09/2019 - ]: Wiring Diagram

GTY902177

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
