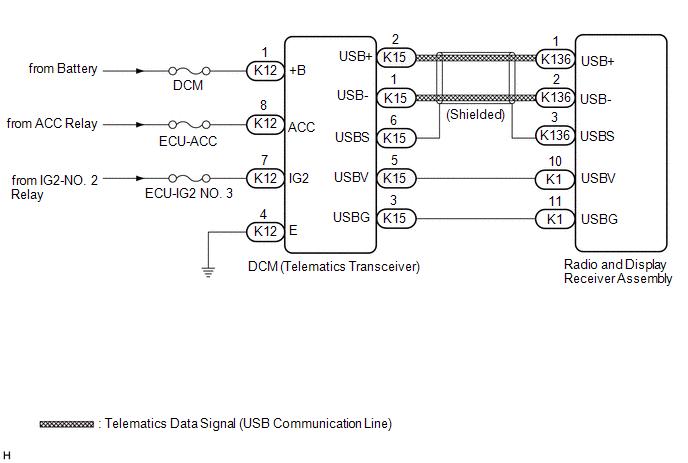

DTC B15DB: Telematics Transceiver Disconnected [03/2017 - 09/2019]: Wiring Diagram

GTY762040

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
