DTC B15C3: Speaker Output Short [08/2018 - 09/2019]: Wiring Diagram

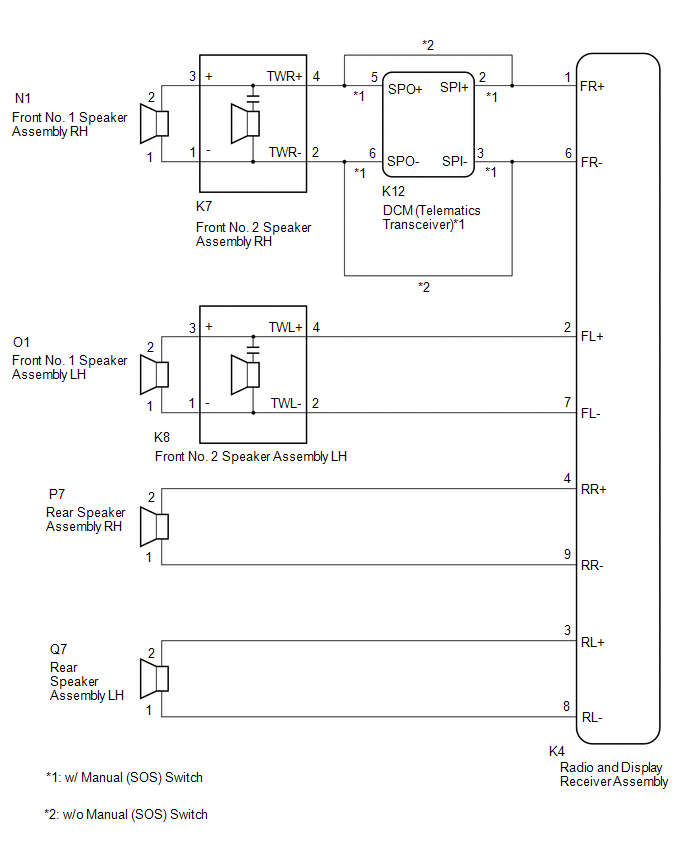

for 6 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 9 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
