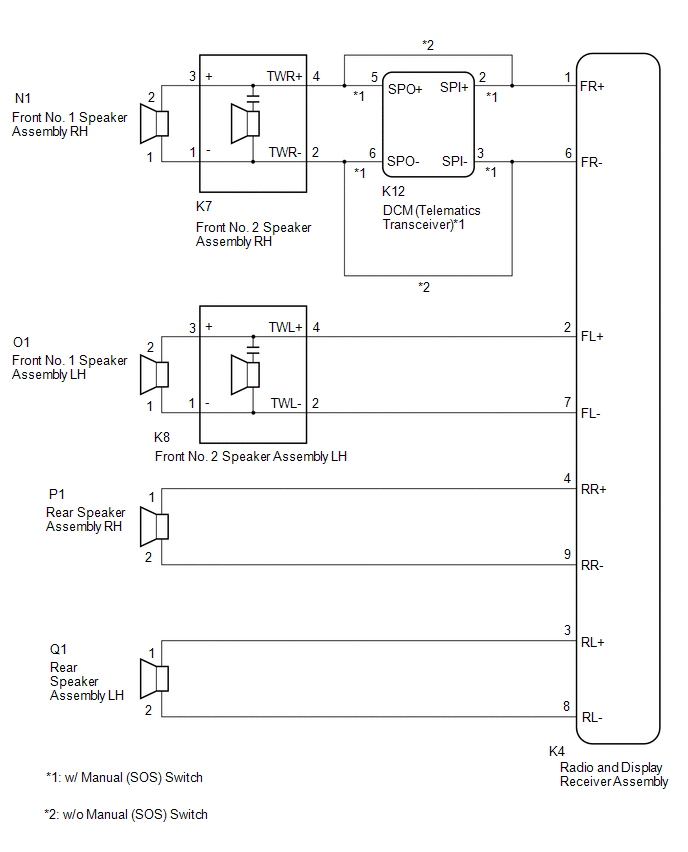

DTC B15C3: Speaker Output Short [03/2017 - 06/2017]: Wiring Diagram

GTY758654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
