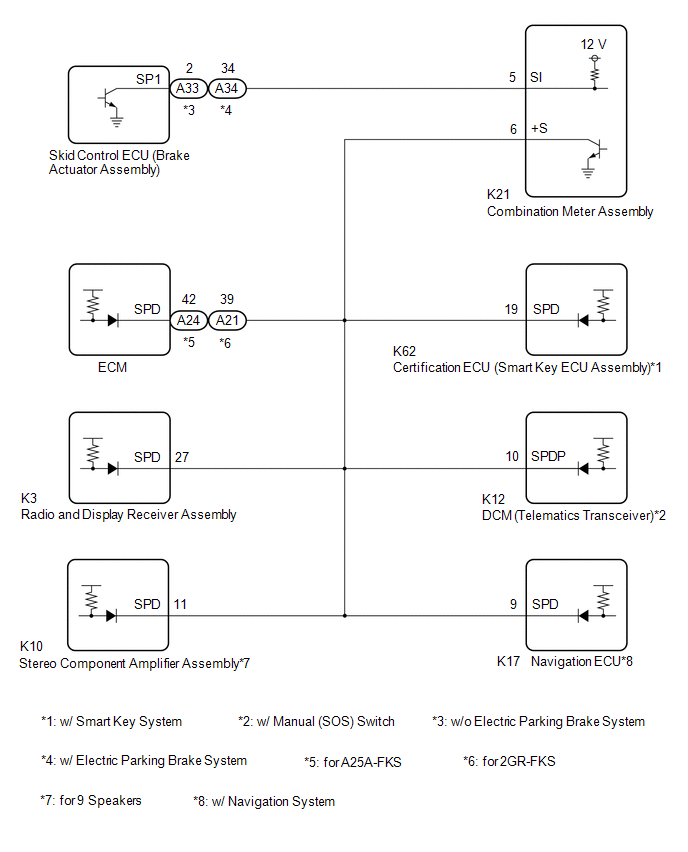

Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter [06/2017 - 09/2019]: Wiring Diagram

GTY765392

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
