Speaker Circuit [09/2019 -]: Wiring Diagram

for 6 Speakers

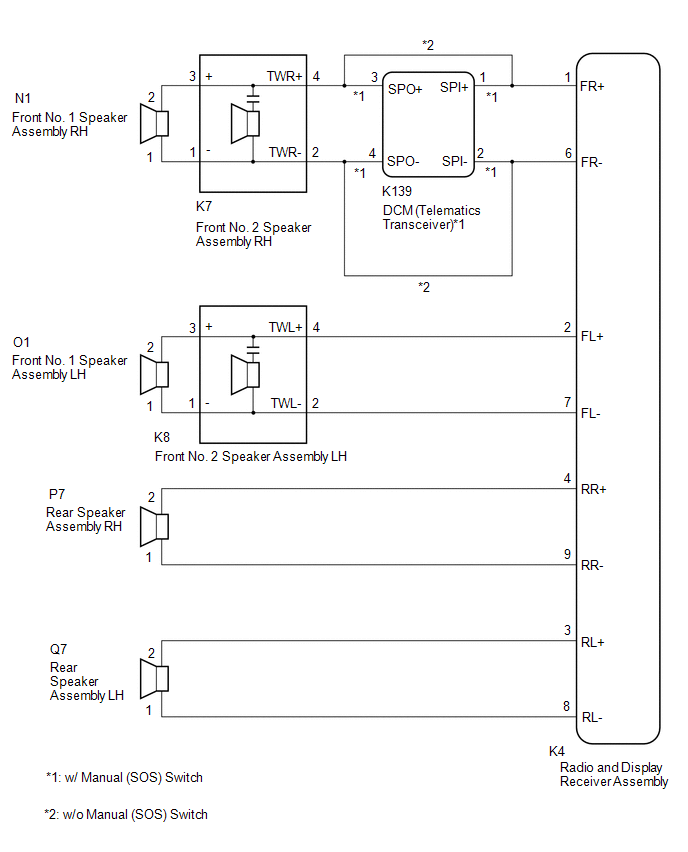

GTY896146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 9 Speakers

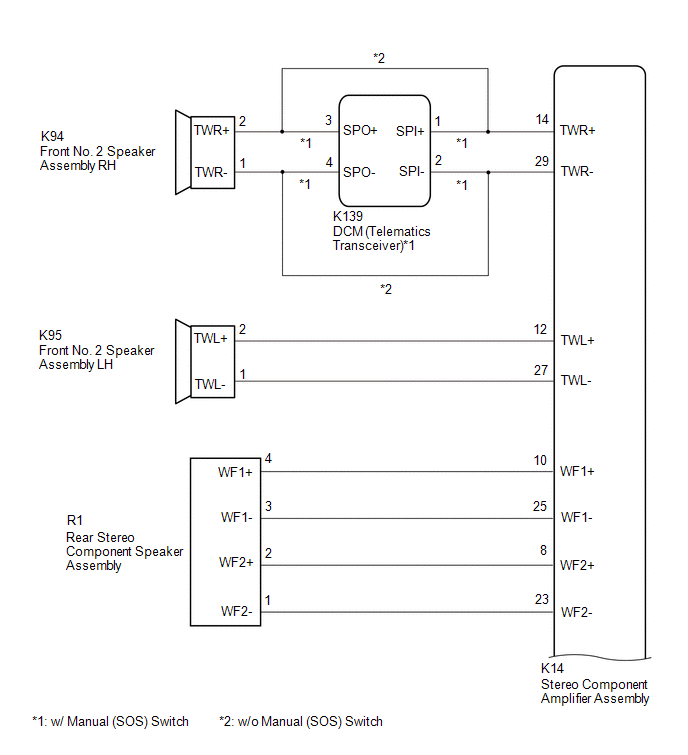

GTY926644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY743301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
