Microphone Circuit between Microphone and Radio Receiver [03/2017 - 06/2017]: Wiring Diagram

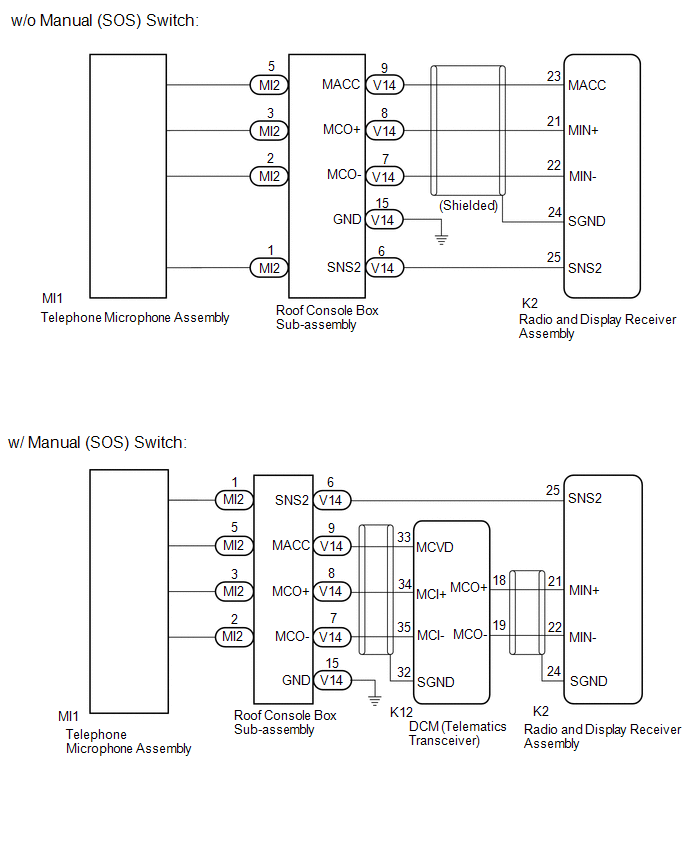

w/ Sliding Roof

GTY760633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

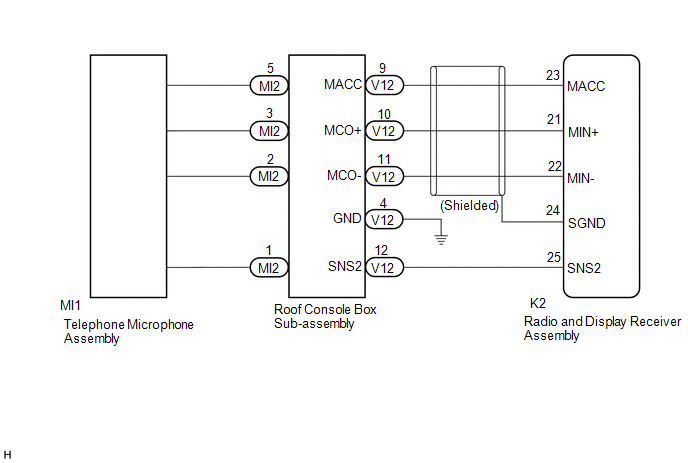

w/o Sliding Roof

GTY761438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
