Parts Location [03/2017 - 06/2017]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

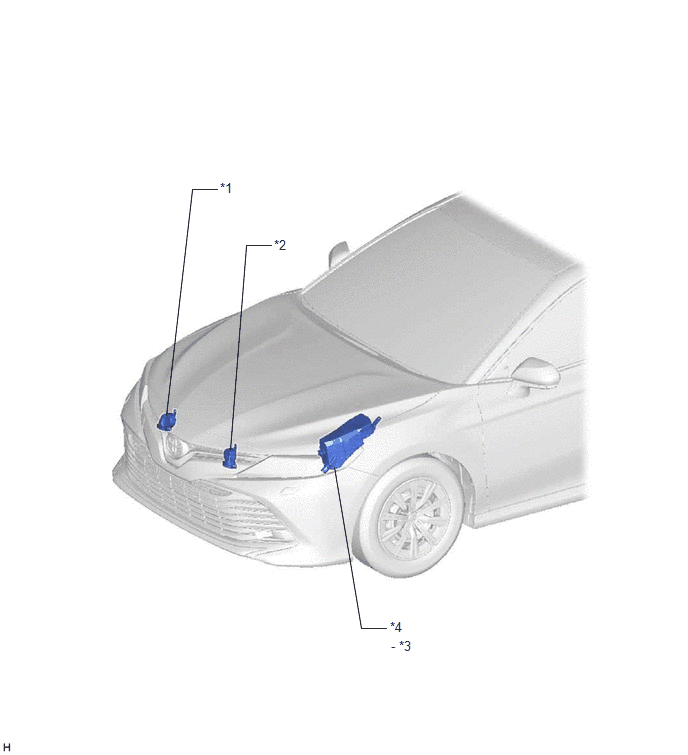

*1	HIGH PITCHED HORN ASSEMBLY	*2	LOW PITCHED HORN ASSEMBLY
*3	HORN RELAY	*4	ENGINE ROOM RELAY BLOCK - HORN FUSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

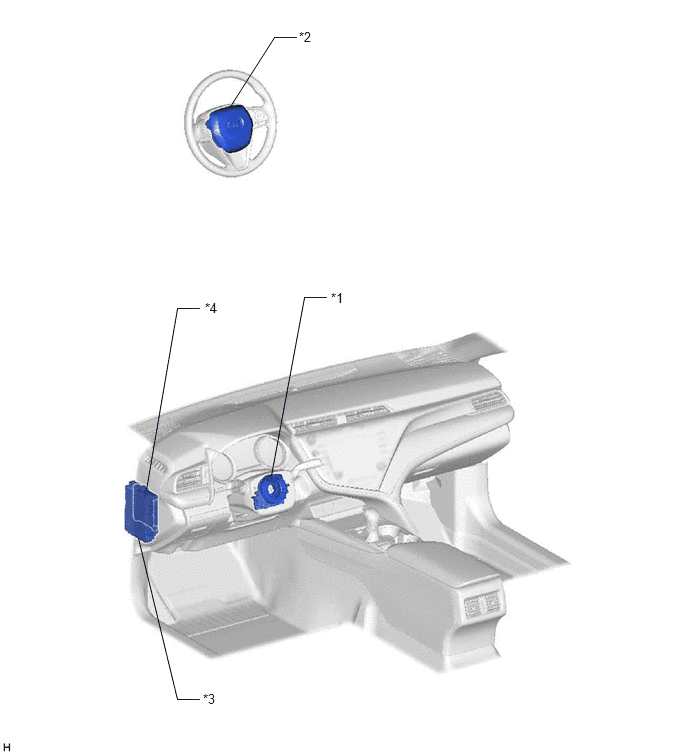

*1	SPIRAL CABLE SUB-ASSEMBLY	*2	HORN BUTTON ASSEMBLY
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
