Removal [03/2017 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 15 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 15 [10/2020 - ]

  2. REMOVE STOP LIGHT SWITCH ASSEMBLY

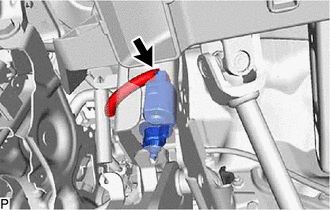

    1. Disconnect the connector.
      GTY762446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

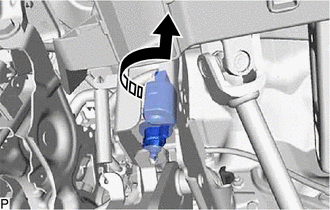

    2. Turn the stop light switch assembly counterclockwise and remove it.
      GTY748255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
