Removal [03/2017 - ]: Procedure

Refer to PROCEDURE - Step 1 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 1 [06/2017 - 09/2019] , or refer to PROCEDURE - Step 1 [09/2019 - 03/2020] , or refer to PROCEDURE - Step 1 [03/2020 - ]

Refer to PROCEDURE - Step 16 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 16 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 16 [10/2020 - ]

See step  5 [03/2017 - 06/2017], or see step  5 [06/2017 - 10/2020], or see step  5 [10/2020 - ]

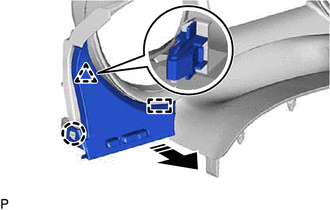

1. Disengage the claw, clip and guide to remove the trip switch as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction
