Inspection [03/2017 - ]: Procedure

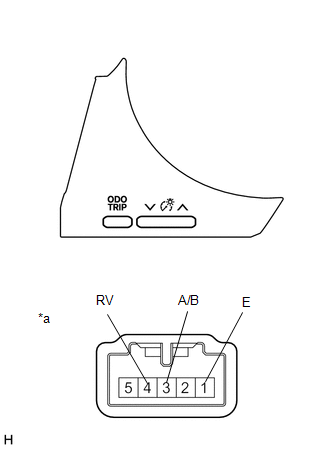

INSPECT TRIP SWITCH

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Component without harness connected (Trip Switch)

Standard Resistance

Tester Connection	Condition	Specified Condition
4 (RV) - 1 (E)	Light control rheostat up switch pressed	Below 50 Ω
4 (RV) - 1 (E)	Light control rheostat up switch not pressed	10 kΩ or higher
4 (RV) - 1 (E)	Light control rheostat down switch pressed	1.71 to 1.94 kΩ
4 (RV) - 1 (E)	Light control rheostat down switch not pressed	10 kΩ or higher
3 (A/B) - 1 (E)	ODO/TRIP switch pressed	Below 50 Ω
3 (A/B) - 1 (E)	ODO/TRIP switch not pressed	10 kΩ or higher

If the result is not as specified, replace the trip switch.

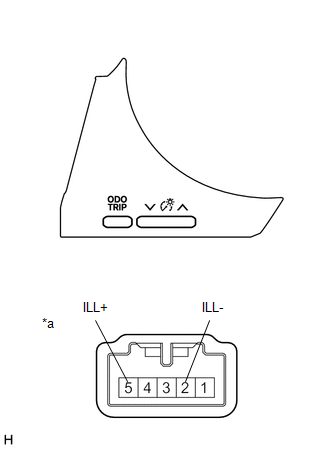

Illumination Inspection

*a	Component without harness connected (Trip Switch)

Apply battery voltage to the trip switch and check that it illuminates.

Condition	Specified Condition
Battery positive (+) → Terminal 5 (ILL+) Battery negative (-) → Terminal 2 (ILL-)	Illuminates

If the result is not as specified, replace the trip switch.
