Reassembly [06/2017 - ]: Procedure

  1. INSTALL NO. 1 COMBINATION METER MIRROR PLATE
    1. Connect the light sensor assembly with the screw.
      GTY743796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Light Sensor Assembly

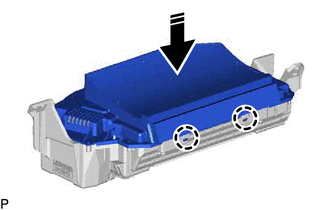

    2. Engage the 2 claws as shown in the illustration.
      GTY743544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the No. 1 combination meter mirror plate with the 8 screws.
      GTY752615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL COMBINATION SPEED METER CUSHION
    1. Clean the meter mirror sub-assembly surface.
      1. Remove any remaining double-sided tape from the meter mirror sub-assembly.
      2. Wipe off any tape adhesive residue with cleaner.
    2. Remove the release paper from a new combination speed meter cushion.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    3. Install the combination speed meter cushion.
      GTY760608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
  3. INSTALL NO. 1 COMBINATION SPEED METER CUSHION
    1. Clean the meter mirror sub-assembly surface.
      1. Remove any remaining double-sided tape from the meter mirror sub-assembly.
      2. Wipe off any tape adhesive residue with cleaner.
    2. Remove the release paper from a new No. 1 combination speed meter cushion.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    3. Install the No. 1 combination speed meter cushion.
      GTY758513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
  4. INSTALL METER MIRROR WIRE
    1. Engage the 2 clamps.
      GTY771173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector to install the meter mirror wire.
