Disassembly [06/2017 - ]: Procedure

  1. REMOVE METER MIRROR WIRE

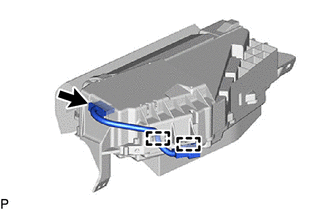

    1. Disconnect the connector.
      GTY771173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps to remove the meter mirror wire.
  2. REMOVE NO. 1 COMBINATION SPEED METER CUSHION

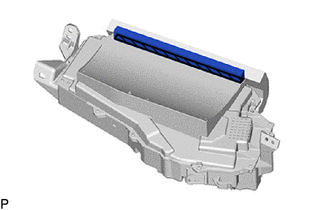

    1. Remove the No. 1 combination speed meter cushion.
      GTY758513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
  3. REMOVE COMBINATION SPEED METER CUSHION

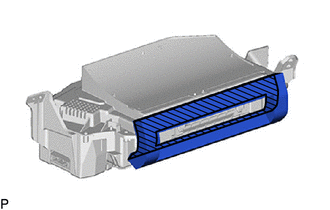

    1. Remove the combination speed meter cushion.
      GTY760608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
  4. REMOVE NO. 1 COMBINATION METER MIRROR PLATE

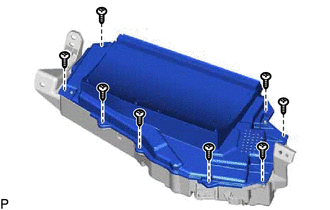

    1. Remove the 8 screws.
      GTY752615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

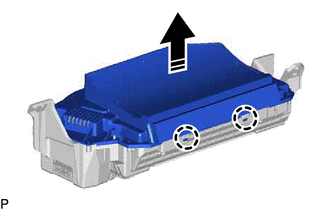

    2. Disengage the 2 claws as shown in the illustration.
      GTY742198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

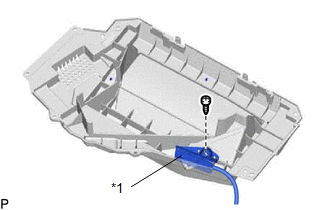

    3. Remove the screw.
      GTY743796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Light Sensor Assembly
    4. Disconnect the light sensor assembly to remove the No. 1 combination meter mirror plate.
