Combination Meter
>>
Components [03/2017 - ]
Components [03/2017 - ]

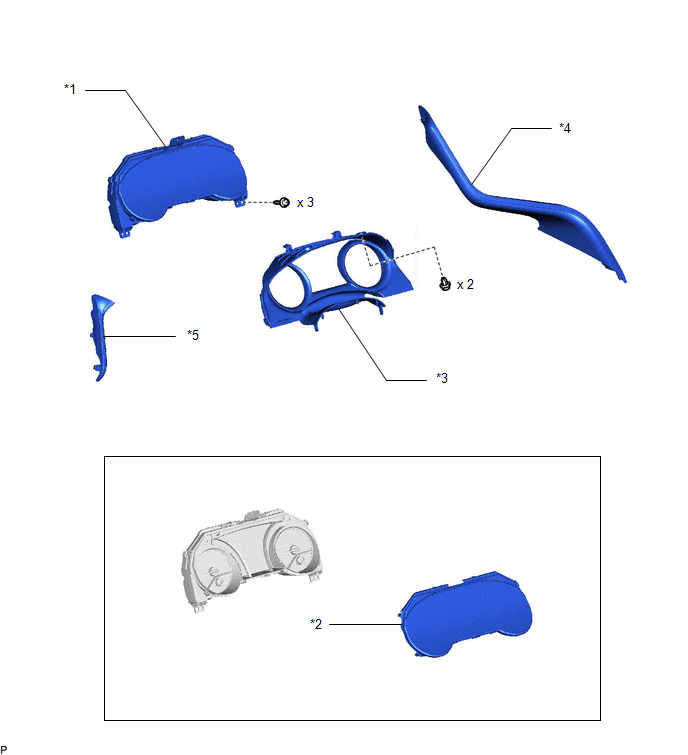

Fig 1: Combination Meter Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
COMBINATION METER ASSEMBLY
*2
COMBINATION METER GLASS
*3
INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
*4
NO. 1 METER HOOD CLUSTER
*5
NO. 2 METER HOOD CLUSTER
-
-
