Parts Location [10/2020 - ]: Illustration

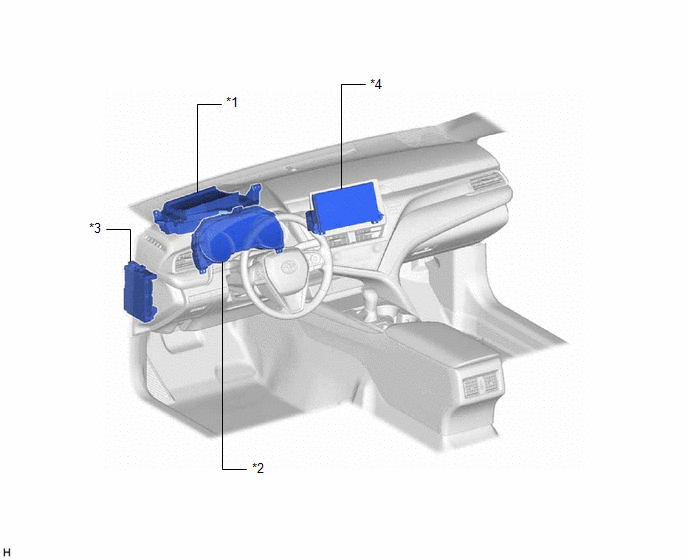

GTY990280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 METER MIRROR SUB-ASSEMBLY *2 COMBINATION METER ASSEMBLY
*3 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-DCC NO. 2 FUSE
- ECU-IG1 NO. 4 FUSE		 *4 RADIO AND DISPLAY RECEIVER ASSEMBLY
