HEADUP Display System - Diagnostic Codes (Except Hybrid)
>>
HEADUP Display System
>>
DTC B1321-87: Lost Communication with EMV Missing Message [06/2017 - 10/2020]
>>

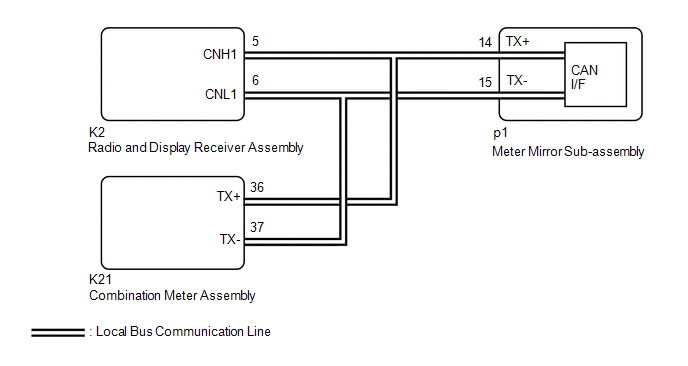

Wiring Diagram
DTC B1321-87: Lost Communication with EMV Missing Message [06/2017 - 10/2020]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
