Parts Location [10/2020 - ]: Illustration

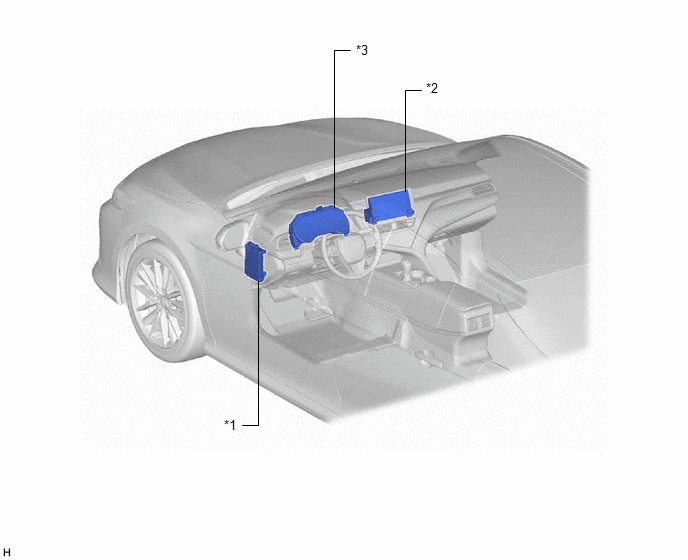

GTY990888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 4 FUSE
- RADIO FUSE
- ECU-ACC FUSE
- ECU-DCC NO. 2 FUSE
- METER-IG2 FUSE		 *2 RADIO AND DISPLAY RECEIVER ASSEMBLY
*3 COMBINATION METER ASSEMBLY - -
