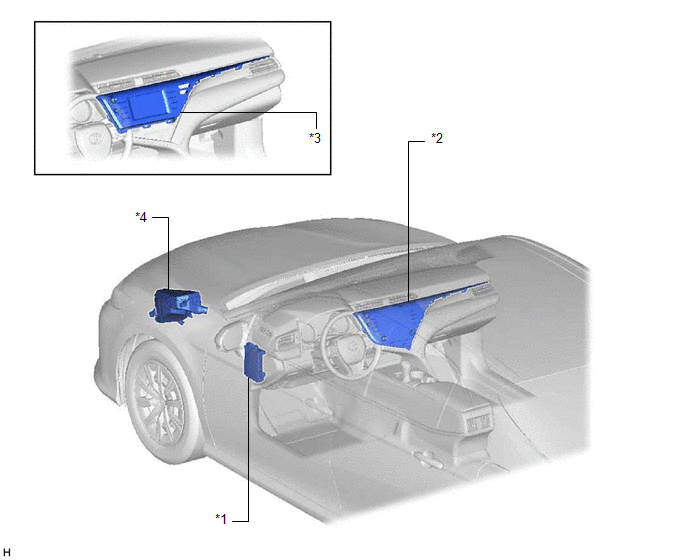

Parts Location [03/2017 - 08/2018]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE - RADIO FUSE (for 7 Inch Display Type) - ECU-ACC FUSE	*2	RADIO AND DISPLAY RECEIVER ASSEMBLY (for 8 Inch Display Type)
*3	RADIO AND DISPLAY RECEIVER ASSEMBLY (for 7 Inch Display Type)	*4	ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - TV FUSE (for 8 Inch Display Type)
