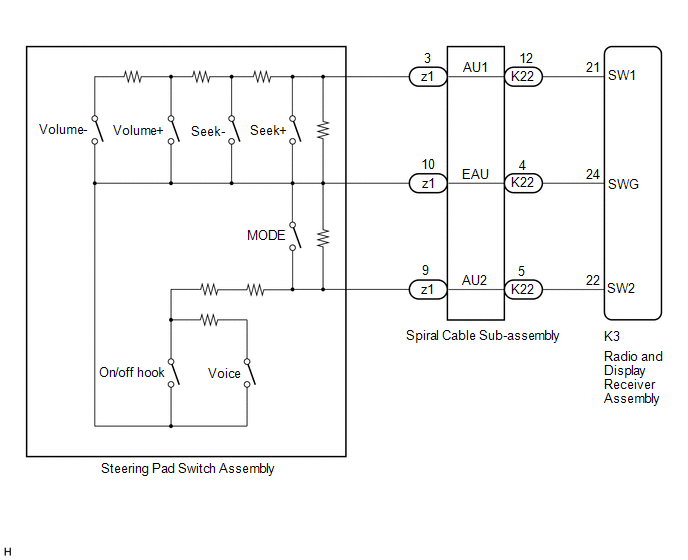

Steering Pad Switch Circuit [03/2017 - ]: Wiring Diagram

GTY750708

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
