Speaker Circuit [08/2018 - 09/2019]: Wiring Diagram

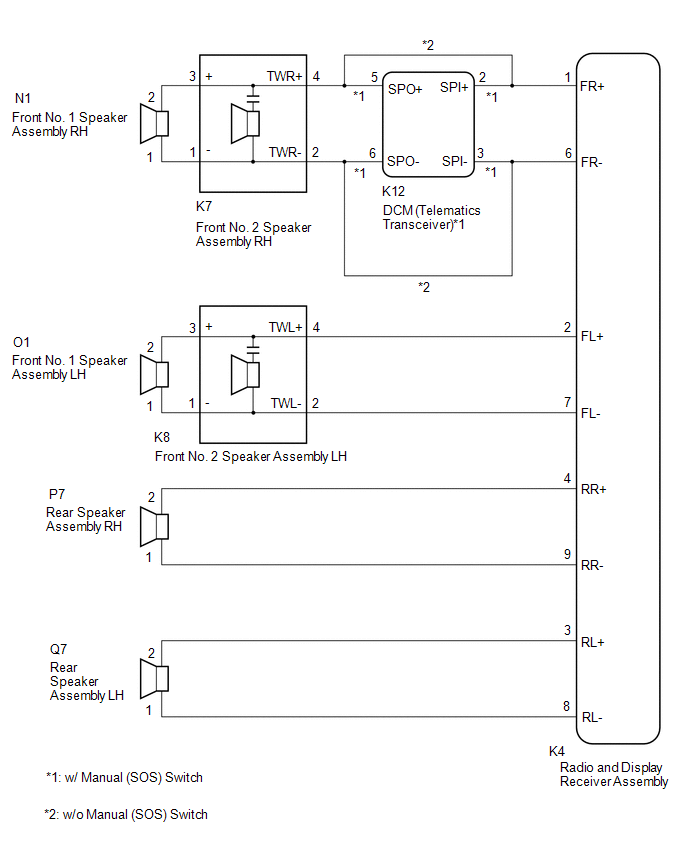

for 6 Speakers

GTY896155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 9 Speakers

GTY741276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY743301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
