ECM Communication Stop Mode [06/2017 - ]: Procedure

  1. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      for A25A-FKS A
      for 2GR-FKS B

    Result:

    B

    See step  4

    Result:

    A

    See step  2

  2. CHECK FOR OPEN IN CAN BUS LINES (ECM MAIN LINE)
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Disconnect the A24 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY766513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to ECM)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A24-8 (CANH) - A24-18 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (ECM)

    Result:

    OK

    See step  3

  3. CHECK ECM POWER SOURCE CIRCUIT
    1. Check the ECM power source circuit.

      Refer to ECM Power Source Circuit [03/2017 - ]

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [06/2017 - 03/2020]  , or refer to  REMOVAL [03/2020 - 10/2020]  , or refer to  REMOVAL [10/2020 - 08/2022]  , or refer to  REMOVAL [08/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

  4. CHECK FOR OPEN IN CAN BUS LINES (ECM MAIN LINE)
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Disconnect the A21 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

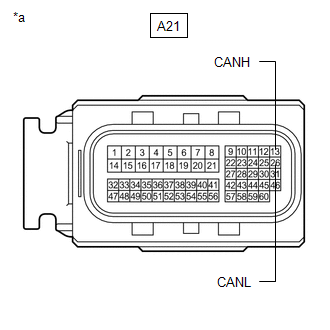

      GTY751272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to ECM)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A21-13 (CANH) - A21-26 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (ECM)

    Result:

    OK

    See step  5

  5. CHECK ECM POWER SOURCE CIRCUIT
    1. Check the ECM power source circuit.

      Refer to ECM Power Source Circuit [06/2017 - ]

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [06/2017 - 10/2020]  , or refer to  REMOVAL [10/2020 - 08/2022]  , or refer to  REMOVAL [08/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
