Check Bus 1 Lines for Short Circuit [10/2020 - ]: Wiring Diagram

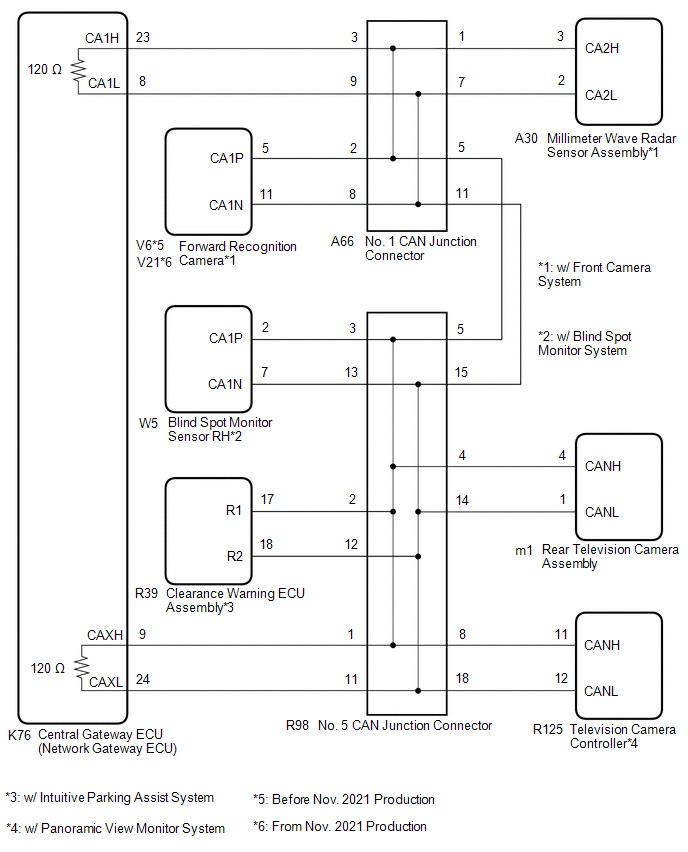

w/ Parking Assist Monitor System or Panoramic View Monitor System
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

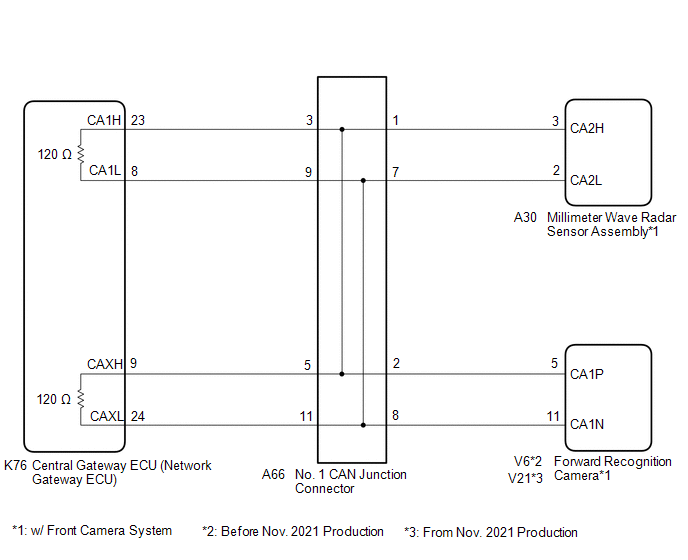

w/ Rear View Monitor System
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
