Check Bus 1 Lines for Short Circuit [08/2018 - 10/2020]: Wiring Diagram

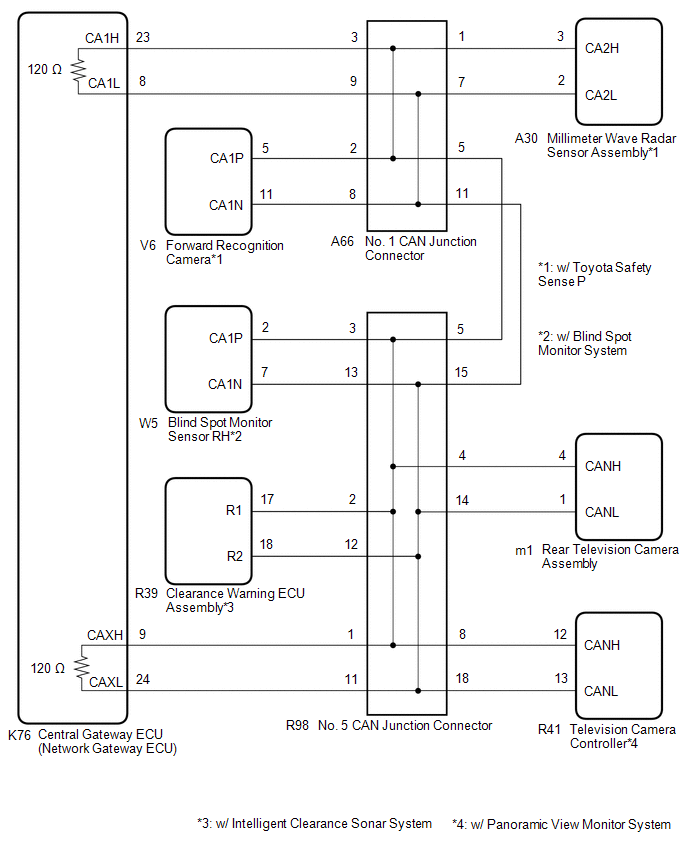

w/ Parking Assist Monitor System or Panoramic View Monitor System

GTY884671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

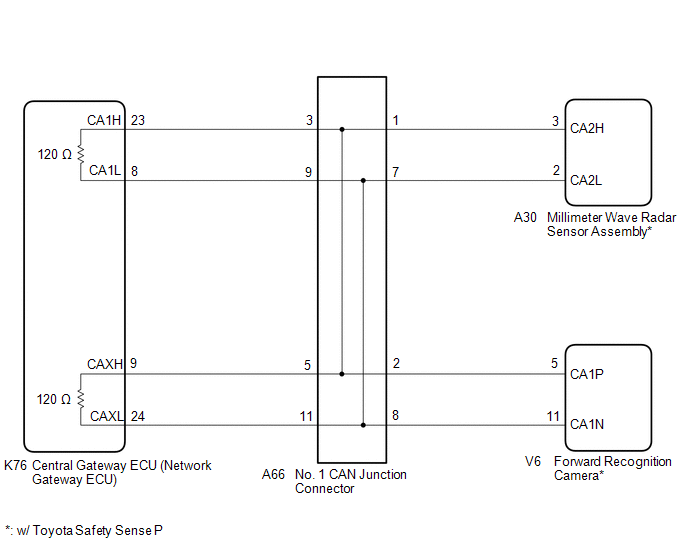

w/ Rear View Monitor System

GTY872328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
